Features of Raymond Mill

1. The whole machine is vertical structure and occupies small area, strong systematicness. From the

rough process to the power and to the end packing, the machine can be a independent producing

system.

2. Compared with other grinding equipment, the rating of throughing screen can be 99 percent

maximally.

3. The hoster's transmission gear applies of seal gearbox and belt pulley, steady transmission,

reliable operation.

4. All the important components are made of high quality casting and section. Therefore they have

exquisite workmanship which guarantee the durability of the whole system.

5. Concentrate control of electrical system, advance, reasonable and highly automated.

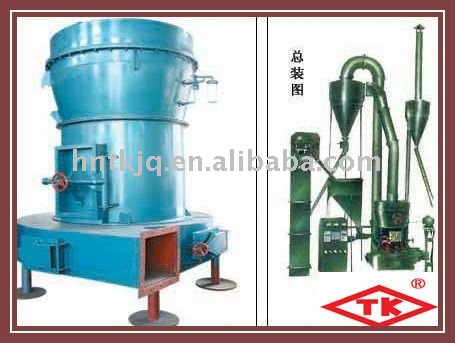

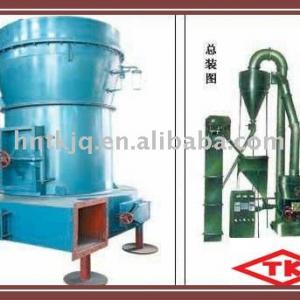

Principles of Raymond Mill

After large blocks of materials are crushed to the feed size by Jaw Crusher, they are lifted to storage silo by bucket hoister, and then are conveyed to chamber of mainframe by electromagnetic vibrating feeder uniformly, and ground between the ring and roller. The airflow of blower brings the ground powder to classifier to separate; the required fineness powders are blown into the cyclonic collector with airflow for separation&collection, then becomes to be the finished product after discharged. In the working process, the blade system located at the bottom of roller has played a very important role. In the process of blades rotating with roller together, the blades shovel the materials and throw them into the chamber between roller and ring, which form the material bed. The material bed generates the extrusion force and grinds the materials into pieces by the effect of grinding roller so as to achieve the purpose of powder making.

Applications of Raymond Mill

It is widely used for in the fields of metallurgy, building materials, mining, chemical industry and so

on. The materials must be non-flammable and non-explosive materials such as: gypsum, talcum,

calcite, limestone, potassium, barite, dolomite, granite, kaoline, amargosite, medical stone, bauxite,

iron oxide red, iron ore and so on. The materials should have the hardness less than 7 in Moh's

scale and humidity less than 6 percent . The granularity of the end products can be adjusted from

613 to 440 micra(0.613-0.44 centimeters). It can meet different users' demands through the

combinedaction of analyzer and blower.

Technical Parameters of Raymond Mill

Technical Parameter/Type	3R1510	3R2115	3R2615	3R2715	3R3016	4R3216	5R4119	3R7826	3R8327	4R9531
Max Feeding Size(mm)	≤8	≤15	≤20	≤20	≤20	≤30	≤30	≤20	≤20	≤30
Finished Product Granularity(mm)	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044
Shift Output(Different Materials)(t)	1-10	1-18	2-25	2-28	3-35	3-45	5-70	2-28	3-30	3-38
Rotating Speed Of Central Shaft(r/min)	280	180	150	150	130	130	103	150	150	130
Grinding Ring Internal Diameters(mm)	Φ405	Φ640	Φ780	Φ830	Φ870	Φ970	Φ1280	Φ780	Φ830	Φ950
Grinding Roll Diameters(mm)	Φ150	Φ210	Φ260	Φ270	Φ300	Φ320	Φ410	Φ260	Φ270	Φ310
Height of Grinding Ring and Grinding Roll(mm)	100	150	150	150	160	160	190	150	150	170

Note: The above technical parameters are just for your reference. If there are any changes, all parameter are subject to the operating instructions.
