high quality Mini Oil Refinery to Make Diesel from crude oil

2013 good sales Mini Oil Refinery to Make Diesel from crude oil, low maintenance cost, long service life, reliablesafety system - details see: https://www.machineto.com/high-quality-mini-oil-refinery-to-make-diesel-from-crude-oil-10340442

Condition:New	Type:Tire Machine,new	Tire Machine Type:Tire Recycling Machine	Place of Origin:Henan China (Mainland)
Brand Name:ALLANCE	Model Number:Waste Tyre Oil Refinery	Voltage:380V	Power(W):22 KW
Dimension(LWH):103010 M	Weight:37 MT	Certification:CE&ISO14001/9001	Warranty:2 year
After-sales Service Provided:Engineers available to service machinery overseas	Raw material::Used rubber&tyre&plastic	capacity:5 ton -15 ton per day	Warranty time::2 years warranty and all life maintance
Cooling method::water cooling	Output product:oil & carbon black & steel wire	land required::300-400 ?	Workers required::3 to 4
machine life::not less than 10 years except reactor	Color:According to your requirement

Mini Oil Refinery to Make Diesel from crude oil

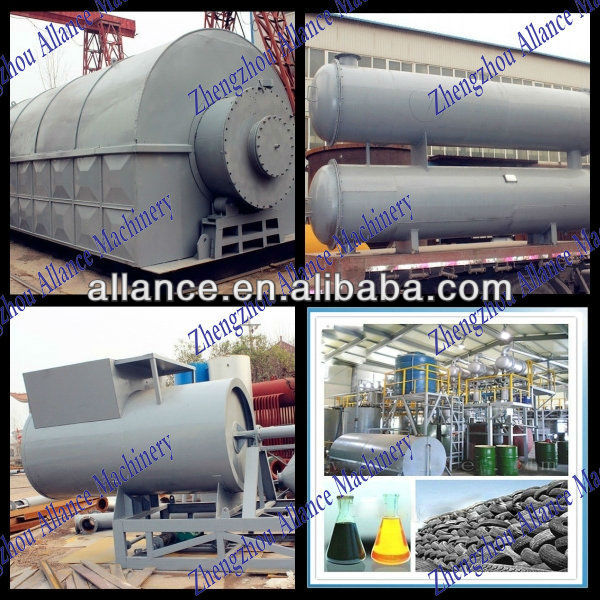

1. Components of Equipments

a. Pyrolysis system

b. Pressure and Thermometer system

c. Cooling system

d. Oil store system

e. Waste gas recycle system

f. Deduster system

g. Carbon black slag system

2. Oil Yield Rate

Raw material		Oil yield	Steel wire	Carbon black	water
Waste tire/rubber	Big tyres	45%-50%	15%-20%	30%	5%-10%
	Car tyres	40%	10%-15%	45%	5%-10%
	Bicycles and motorcycles tyres	30%-35%	5%-10%	45%	5%-10%
Waste plastic	Fishing net	45%-50%		30%
	Safety net, farm-oriented film	45%-50%		25%
	Convenient bags, weave bags	40%		30%
	Off-cut of recycled paper mill	20%-30%		20%

3. Power

System	Components	Power
Pyrolysis system	Screw conveyor	4 kw / h
	Cracking reactor	3 kw / h
	Gas separate
	Depositing tank
Cooling system	Cooling pool
Oil store system	Oil tank
Waste gas recycle system	Waste gas recycle system
	Spray gun
	Blower	0.25 kw / h
	Furnace
Deduster system	Desulfurization deduster
	Water film cyclone
	Draft fan	4 kw / h
	Chimney

Safety:

1. Professional sealing technology for cover, oil outlet.

2. Heavy oil is separated which can avoid the problems of jam in later condensing.

3. Vacuum system will prevent exhaust gas from going back to reactor and causing accident.

4. Alarm, safety valves, thermometer, pressure gauge and safety valve.

5. It is dangerous to burning exhaust gas (C1 to C4). In our process, it is transferred first through the safety device and a safety burning air muzzle. Before burning, we should ensure the safety of production.

Easy to operate:

1, put the raw material into furnace

2, burn the fuel material(coal, or wood, or natural gas, or oil ) in the combustion system.

After finishing oil producing, the temperature of reactor will come down, at the same time, carbon black will be discharged automatically.

3, when the temperature falls to 100 degree celsius, worker could open the door of the reactor to discharge the steel wire, then can start another batch.
