ceramic ball mill for sale, 1.for cement, silicate, ceramic, 2.wet or dry ball mill, 3. overflow or grate ball grind - details see: https://www.machineto.com/high-quality-ceramic-ball-mill-with-electric-control-cabinet-for-free-10314583

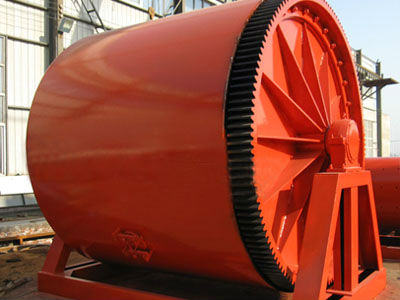

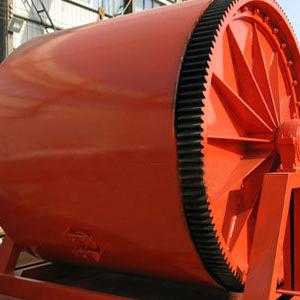

ceramic ball mill for sale

Application of ceramic ball mill
Ball mill is the key grinding equipment after the crushing process. It is widely used in the many industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics. According to the discharging ways of ore, ball mil can also be divided into the grid type and the overflow type.

Working principle of ceramic ball mill

lBall mill is a horizontal rotating device transmitted by the outer gear. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The finished materials are discharged through the discharging board thus the grinding process is finished.

Great features of ceramic ball mill
1. The barrel body is wearable and bears wearable scale board.

2. This ball mill runs steadily and works efficiently.

3. High technology, easy operation, energy saving, lower noise.
4. The ball mill is made up of feeding part, discharging part, gyre part, transmission part (reducer, small transmission gear, motor, and electrical controller) and so on.

5 The hollow axis adopts the cast steel, and the lining can be replaced. The big rotary gear is forged from cast rolling gears.

6. The barrel body is inlaid with wearable plates.

technical data of ceramic ball mill

Model	Feeder capacity(t/time)	Shell rotation speed(r/min)	Reference motor(kw)	Liner material
600*700	0.05	50	2.2	Line material(chinaware, silicon, rubber, metal)reference motor depend on the material of the line and milling material.
800*600	0.075	42	3
900*1200	0.2	38.5	5.5
1300*1500	0.5	33	7.5
1500*1800	1.2	28.5	11
1800*2000	1.5	24	15
2600*2800	5	16.5	37
3000*3800	10	14.5	57.2
3200*4600	15	13.5	75
