wood pellet Machine:, 1,Ring die pellet mill., 2,Main drive is gear drive., 3,Main power:90 kw., 4,high capacity. - details see: https://www.machineto.com/high-quality-biamass-fuel-wood-pellet-machine-10353901

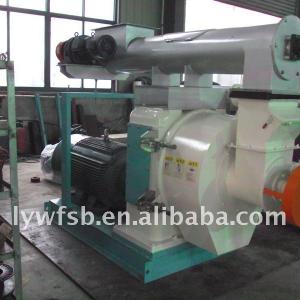

high quality biomass fuel Wood Pellet machin:

1)Ring die and gear drive type;

2)wood pellet machine without conditioner;

3)Ring die pellet mill is far superior to flat die technology;
4)Gear drive is much better than belt drive;
5)Includes one ring die and a set of rolls.

A large selection of stainless steel or alloy steel dies for this machine that can be purchased separately

1 Driven with heavy-duty gearbox construction can produce continuously in most adverse condition.

2 The imported key elements are of high performance with long life and low maintenance cost.

3 The key parts are made of alloy steel to be very strong and malleable. Die is made of stainless steel.

4 Pellet machine is widely used in the granulation of wood, straw, rice husk and other biomass sources.

Technical Parameters

NO	NAME	Model
		MZLH42	MZLH508
1	Capacity (wood pellet )	0.8-1.2	1.8-2.0
2	Power	90/110	132/160
3	Screw feeder Power	0.75	0.75
4	Pellet size	φ6, φ8,φ10,φ12	φ6, φ8,φ10,φ12
5	No. of press roll	2	2
6	Outer diameter of press roll	206	222
7	Dimension(mm)	3150*1100*1650	3200*1300*1850
8	Weight(t)	3.1	3.5
