The Advantage of Three Rollers Wet Pan Mill:, 1.High grinding efficiency, 2.Good abrasive resistance, 3.Low consumption - details see: https://www.machineto.com/high-production-earnings-wet-pan-mill-from-shenzhou-brand-10314305

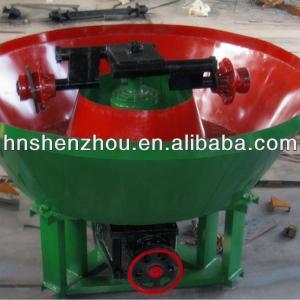

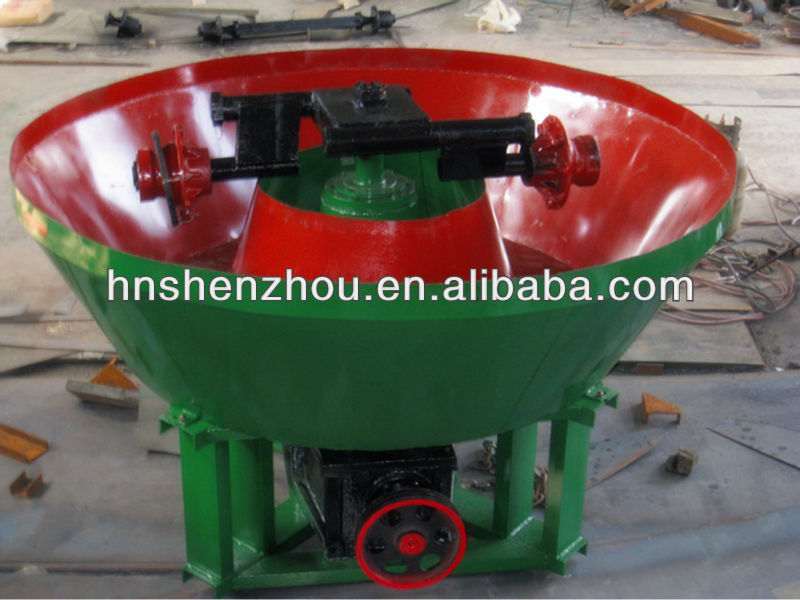

1.The Introduction of Three Rollers Wet Pan Mill

The Wet Pan Mill is also called Wet Grinding Machine,based on the different structure that devided into double

stone grinding and three stone grinding.They are mainly used for grinding operation,such as all kinds of ferrous

metal,non-ferrous metal,non-metallic minerals and the separation of gols ,silver,lead,iron,copper and so on.

2.The Working Process of Three Rollers Wet Pan Mill

1>Firstly the motor will transmit the motive power to reduction gears,under the drive of reduction gears that

passing through large vertical spindle,then the power cabient transfers to above whippletree.

2>The whippletree pulls the two runner wheels clcokwise rotation,runner wheels are not only revoluting around

the large vertical spindle but also could retating by themselves.

3>After adding into ore,the materials are under the extrusion of grinding roller weight to revoluting and rotating

with runner wheels,when twisting that coming into being huge friction force with grinding base,after suffering

repeated extrusion,rub,grinding that be crushed thoroughly.

4>Under the effection of grinding roller operating,the crushed materials and the water mixed intensively to float on it uniformly,then passing through the overflow discharge gate that setting up on the mill basin to discharge,after that enter into next operation procedure to process.

5>Coarse mineral was sank on the bottom of grinding base,goning on grinding and crushing,till the fineness could reach to standard floating on it.

3.The Technical Parameters of Three Rollers Wet Pan Mill

Type	1500	1400	1300	1200	1100
Grinding base diameter X width	2100x500	2000x300	2000x270	1900x270	1900x270
Grind base diameter	1500	1400	1300	1200	1100
Overall size	2800x2800x2100			2400x2400x1700
Feeding size	<30	<30	<30	<20	<20
Dischargeing size	0.6--0.07	0.6--0.07	0.6--0.07	0.6--0.07	0.6--0.07
Production capacity (t/h)	4--7	3--5	2--4	1--3	0.8--2
Power(kw)	6classes 37kw	6classes 22kw	6classes 18kw	6classes 15kw	6classes 11kw
Form of ore discharge	overflow type	overflow type	overflow type	overflow type	overflow type
weight(t)	16.2	11.6	10.5	7.5	6.8
