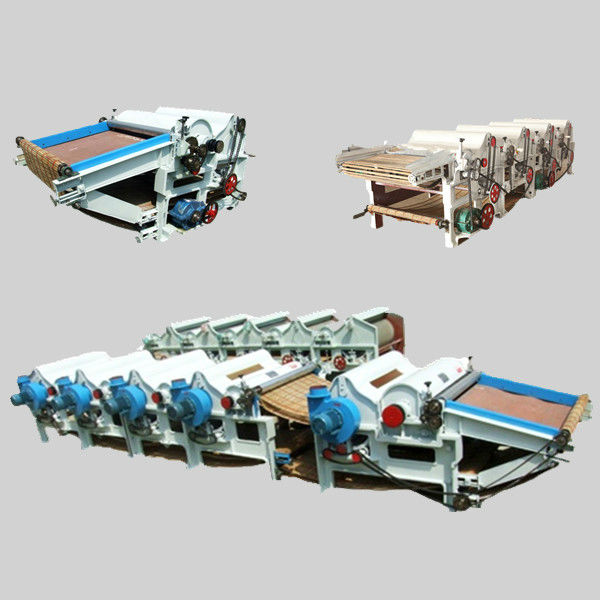

High production Cotton Yarn recycling machine & Cleaning Machine

cleaning machine:

GM-250mm 4roller Cleaning machine—

1) Main motor: 7.5 kw for the first roller,5.5kw for the second,4kw for the last

2) Fan motor: 1.1kw

3) Reducer motor: 20/49 kw

4) Production : 120 kg/h

5) Rotate speed of licker-in roller: 1900 r/min

6) Licker-in roller diameter: 250mm

7) L*w*h: 6*1.5*1.15(m)

8) Weight: 700 kg for the first roller,550kg for the rest.

GM-250mm 6roller Cleaning machine—

1) Main motor: 7.5 kw for the first roller,4kw for the second, third,5.5for the fourth, 4kw for the last two

2) Fan motor: 1.1kw

3) Reducer motor: 20/49 kw

4) Production : 120 kg/h

5) Rotate speed of licker-in roller: 1900 r/min

6) Licker-in roller diameter: 250mm

7) L*w*h: 9*1.5*1.15(m)

8) Weight: 700 kg for the first roller,550kg for the rest.

The machine is manufactured adopting domestic advanced experience and feature of cotton processing equipment,characterized on good quality, high production.low cost. As well as reasonable structure.convenient operation. Safe and reliable.

Removes impurities in the cotton by using mechanical centrifugal force emerged by high speed of barbed rollers and lossen cotton,then press to flake.

Process ginned cotton short floss seed-broken cotton waste yarn cloth leftover and flax.
