high pressure suspension mill, 1.free training of workers, 2.on site installation, 3. we are factory, 4. in time service - details see: https://www.machineto.com/high-pressure-suspension-mill-high-pressure-grinding-mill-10314215

Want to buyHigh-pressure Suspension Mill?

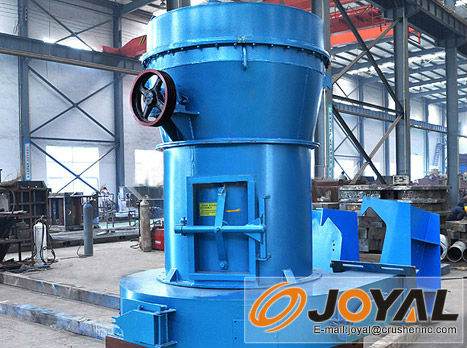

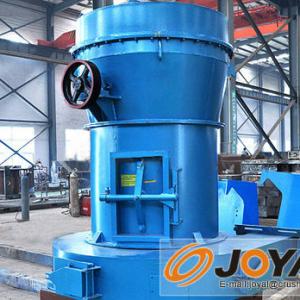

Introduction ofHigh-pressure Suspension Mill

JOYAL High Pressure Mill is an improved type of Raymond mill. The purpose of the this kind mill is to grind non-flammable and non-explosive materials in the fields of building materials, mining, metallurgies and chemical industry with hardness less than 9.3 in Moh’s scale and humidity less than 6 percent. Examples of the materials are: quartz, feldspar, barite, fluorite, dolomite, garnet, bauxite, zircon, marble, calcite, iron ore, rock phosphate, coal, slag and so on(400 kinds of material). The granularity of the final products can be changed from 30 to 425 meshes.

Features ofHigh-pressure Suspension Mill

1. Higher output. Its output increases by 10%-20% comparing with Raymond mill under the same power condition.

2. Larger range of final fineness. Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh).

3.Good dust control. High Pressure Suspension Mill meets the requirement of national dust-dump standard.

4.Easy to operate. The whole system is combined by some independent systems, and the cohesion between the systems is good.

5. Excellent sealing. The multi-class seals are adopted to keep the grinding equipment tight closed.

Working Principle ofHigh-pressure Suspension Mill

General:Crushing -- Grinding -- Selecting -- Collecting

Detailed:The High-pressure Suspension Mill has the same working principle as Raymond Mill, but its grinding fitting is furnished with 1000 - 1500 kg pressure spring.

When the machine works, the grinding roll, under the action of high pressure spring and centrifugal force, rolls close up to grinding ring, its rolling pressure ratio is 1.2 times of Raymond mill given an identical condition, and its output may increase 10% to 20%.Please note that when the grinding roller and grinding ring reach a certain degree of abrasion, please adjust the length of high-pressure spring to keep the constant grinding pressure between grinding roller and grinding ring, so as to ensure a stable output and fineness.

Thanks for your interesting in our product . There are 6 Models of them we manufacturing, their detailed specifications are as follows. If you have any question, please don't hesitate to inquire us, we will provide you professional solutions.

Main Specifications OfHigh-pressure Suspension Mill

Model	Grinding Roll			Grinding Ring		Feeding Size (mm)	Output (mm)	Capacity (t/h)	Motor Power (kw)	Overal Dimension (mm)
	Numbers (pcs)	Diameter (mm)	Height (mm)	Outside (mm)	Height (mm)
YGM75	3	260	150	865	150	<15	0.613-0.033	0.4-3.1	35.7	5000× 4100× 4850
YGM85	3	270	140	907	140	<20	0.613-0.033	0.5-4.0	42.7	5150× 5000× 5200
YGM95	4	310	170	1050	170	<25	0.613-0.033	1.1-5.6	72.5	7550× 7400× 8100
YGM130	5	410	210	1400	210	<30	0.613-0.033	2.2-9.5	157.5	8510× 8000× 9645
YGM160	6	440	270	1740	270	<35	0.613-0.033	8-22	253	12550× 5700× 8355
