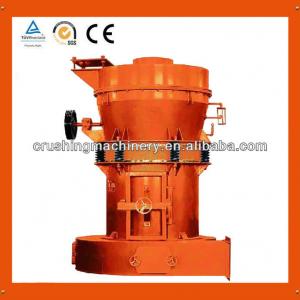

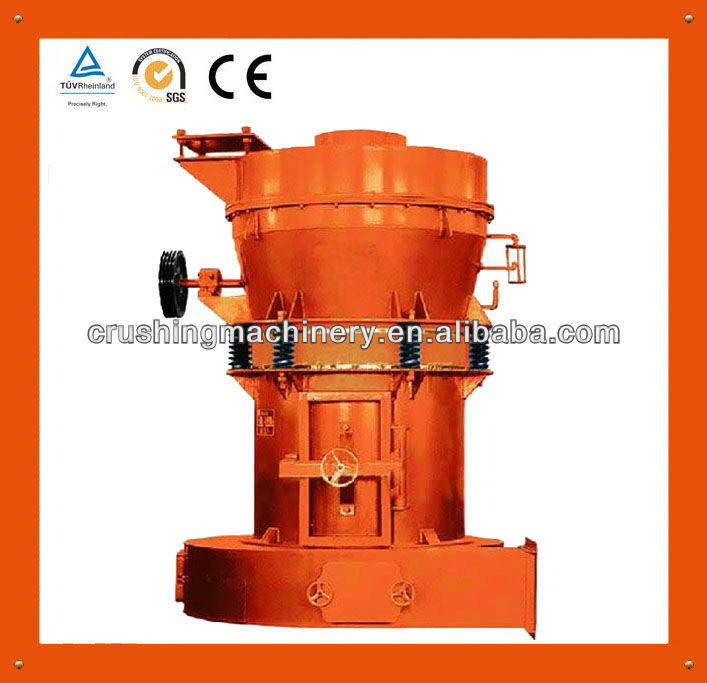

High Pressure Suspension Fine Grinder Mill
| Condition:New | Type:Raymond Mill | Motor Type:AC Motor | Power(W):75000 |
| Place of Origin:Zhejiang China (Mainland) | Brand Name:Shenqi | Model Number:HGM4121 | Certification:TUV/SGS/CE |
| Warranty:One Year | After-sales Service Provided:Engineers available to service machinery overseas | Max.Feeder size:30mm | Granding roll No.:5 |
| Diameter of grinding roll:410mm | Height of grinding roll:210mm | Inner diameter of grinding ring:1280mm | Height of grinding ring:210mm |
PRODUCT NAME
HIGH PRESSURE SUSPENSION GRINDER MILL
APPLICATION:
lMining
lAggregate
lMetallurgy
lIndustrial Material
lConstruction
lEnvironmental Protection
ADVANTAGES
lUnder the same power, the increase in production
lProduct fineness most fine of up 1.000 head
lThe applicability materials for a wide range
lThe dust effects fully meet the state standard
lGood sealing effect, convenient adjustment of grading machine
STRUCTURAL DRAWING
TECHNICAL PARAMETERS OF THE SERIES
Model | Grinding Rolls | Grinding Ring | Max.Feed Size | The Product Particle Size | Motor Power | |||
| Number | Diameter [mm] | Height [mm] | Inner Diameter [mm] | Height [mm] | ||||
| HGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.333 | 18.5 |
| HGM8314 | 3 | 270 | 140 | 830 | 140 | 20 | 0.613-0.333 | 22 |
| HGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.333 | 37 |
| HGM4121 | 5 | 410 | 210 | 1280 | 210 | 30 | 0.613-0.333 | 75 |
| HGM4528 | 6 | 450 | 280 | 1600 | 280 | 35 | 0.613-0.333 | 132 |
Note:The parameters given in the above table are approximate and the actual capacity depends on the material and conditions. For more information please contact SHENQI
OUR CERTIFICATES
OUR FACTORY
OUR CASE
| Packaging Detail:International standard package or As your requirement |
| Delivery Detail:Within 7 Days after we receive the payment |
