High Performance Gold Grinding Machine/Gold Wet Wheel Grinding Mill
| Condition:New | Type:gold wet wheel grinding mill | Motor Type:AC Motor | Power(W):5500-37000 |
| Capacity(t/h):Depending on the model | Place of Origin:Henan China (Mainland) | Brand Name:HengXing | Model Number:Refer to the technical datas |
| Dimension(L*W*H):Refer to th technical datas | Weight:4.5t-14.5t | Certification:ISO9001-2008,CE,SGS | Warranty:1 year excluding the wearing parts |
| After-sales Service Provided:Engineers available to service machinery overseas | Model:Refer to the technical datas | Specification(mm):Refer to the technical datas | Feeding size:Less than 3cm |
| Speed(r/min):13-22 | Power(kw):5.5-37 | Weight(t):4.5-14.5 | Quality:Superior |
| Price:Competitive | Installation:We dispatch the engineers | After-sale service:For the whole using life |

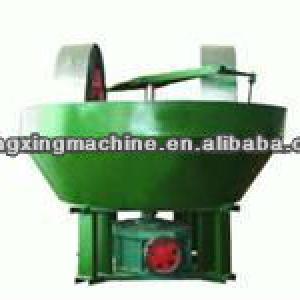

High Performance Gold Grinding Machine/Gold Wet Wheel Grinding Mill
High Performance Gold Grinding Machine/ Gold Wet Wheel Grinding Mill Brief Introduction:
High Performance Gold Grinding Machine/Wet wheel grinding mill is mainly used for separation of gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and other minerals selected. With less investment, fast results, small footprint, saving power, sturdiness and durability, ease of maintenance and high return on investment. It is the preferred production for alternative ball mill, is ideal for small and medium enterprises dressing.We use thicken plate on the water tank and improves gear box. Our Manganese steel liner great increases life the machine. The casting parts is joint by small pieces, even without large lifting device, it can finish parts change, this helps to decrease operation cost.
High Performance Gold Grinding Machine/ Gold Wet Wheel Grinding Mill Technical Datas:
| Model | Specification(mm) | Feeding size | Speed(r/min) | Power(kw) | Weight(t) |
| 1600A | 1600*500*200*500+20 | Feeding size less than 3cm | 20-22 | 37 | 14.5 |
| 1500A | 1500*350*200*460+20 | 20-22 | 22 | 13.3 | |
| 1500B | 1500*350*150*460+20 | 20-22 | 22 | 12.3 | |
| 1500C | 1500*300*150*420+20 | 20-22 | 18.5 | 11.3 | |
| 1400A | 1400*250*150*350+20 | 16-18 | 18.5 | 8.5 | |
| 1400B | 1400*250*150*350+20 | 21-23 | 18.5 | 8.5 | |
| 1350A | 1350*250*150*350+20 | 16-18 | 18.5 | 8 | |
| 1350B | 1350*250*150*350+20 | 21-23 | 18.5 | 8 | |
| 1300A | 1300*250*150*350+20 | 16-18 | 15 | 7.5 | |
| 1300B | 1300*250*150*350+20 | 21-23 | 15 | 7.5 | |
| 1200A | 1200*220*80*270+20 | 17-19 | 7.5 | 5.5 | |
| 1200B | 1200*200*80*250+20 | 23-25 | 7.5 | 5.5 | |
| 1100A | 1100*200*80*250+20 | 17-19 | 7.5 | 5 | |
| 1100B | 1100*200*80*250+20 | 23-25 | 7.5 | 5 | |
| 1000 | 1000*200*80*250+20 | 13-15 | 5.5 | 4.5 |
Certificate:
Factory:
Webisite:www.chinamineline.com or www.crushers-china.net
For more information,welcome to contact us and visit our factory!
| Packaging Detail:Standard container or in bulk,bare main machine,motor and spare parts shall be packed in wooden/iron cases. |
| Delivery Detail:20 working days after placing the order |
