High performance mini ball mill, -environment friendly, -special design, saving energy about 30%, -ISO.CE, -Easy and safe ope - details see: https://www.machineto.com/high-performance-durable-mini-ball-mill-with-iso-ce-approved-10313872

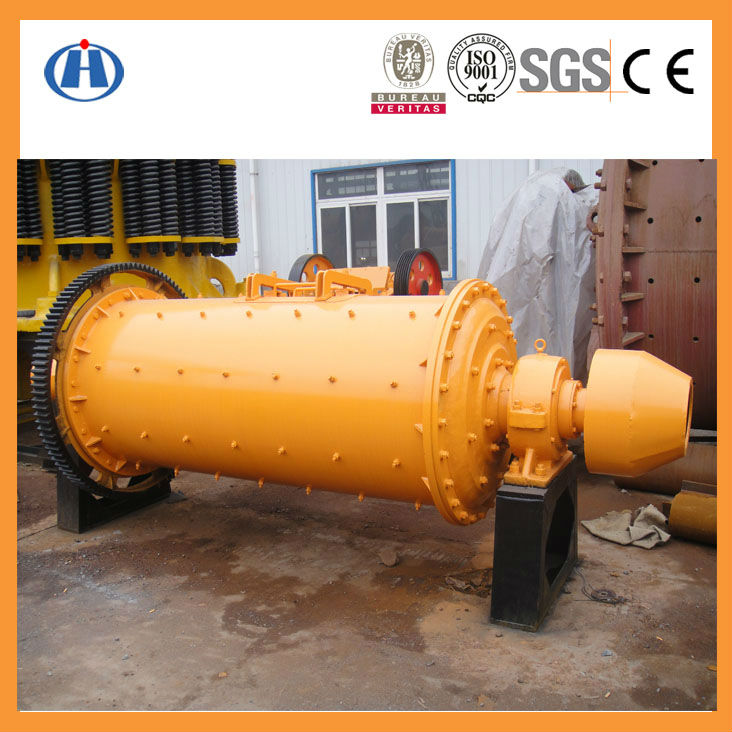

High performance durable mini ball mill with ISO CE approved

Description of mini ball mill :

Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and

other materials, or to select the mine. Ball Mill is widely used in building material, chemical industry, etc. There are two ways of

grinding for Ball Mill: The dry way and the wet way. Ball Mill can be divided into tabular type and flowing type according to different

expelling mine.

To use the Ball Mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel

rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder

over a period of several hours.

Quite simply, the longer the Ball Mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the

material you're grinding is, and the time how long the Ball Mill runs. Our Ball Mills have been used to grind glass, powder food

products, creat custom varnishes, make ceramic glaze, powder various chemicals, and make Black Powder.

Working Principle of mini ball mill :
In the Ball Mill the motor and speed reducer transmit torque to the large and small gears of the Ball Mill, rotating the barrel. When

the barrel rotates, steel balls or other grinding media in the barrel are lifted to a certain height and fall to collide with materials in

the barrel. Grinding media mix continuously and grind the materials. The grinding media and materials collide as the Ball Mill

rotates. The final product is discharged from outlet after it meets specifications.

Main Features of mini ball mill :
1) to grind various of mine materials and other materials;
2) two ways of grinding: Dry-type grinding and wet-type grinding;
3) good wear resistance with wear-resistance liner plates;
4) reducing energy cost by 30%, with double rows of aligning spherical roller bearing;
5) high-grade steel welding, reliable work condition;
6) fine grinding, capacity rising by 15-20% compared with traditional ball mill;
7) finished particle size depends on hardness of materials and the time of ball mill runs;
8) also used to grind glass, food, chemicals, make ceramic glaze.

Advantages ofmini ball mill :

1.Reduce the energy consumption by 30%
2.Increase handling capacity by 15-20%
3.Mini discharging size:0.074(mm)

4.High efficiency

5.Reliable operation

6.Wet process and dry process

The technical data of mini ball mill :

Model (mmxmm)	Speed of bucket (r/min)	Weight of ball (t)	Size of feed opening (mm)	Production (t/h)	Power (kw)	Weight (T)
900×1800	38	1.5	≤20	0.65-2	18.5	3.6
1200×2400	32	3.8	≤25	1.5-4.8	45	12.5
1200×4500	32	7	≤25	1.6-5.8	55	13.8
1500×3000	27	8	≤25	2-5	90	17
1500×5700	27	15	≤25	3.5-6	132	24.7
1830×3000	24	11	≤25	4-10	180	28
1830×6400	24	23	≤25	6.5-15	210	34
1830×7000	24	25	≤25	7.5-17	245	36
2200×5500	21	30	≤25	10-22	370	48.5
2200×6500	21	30	≤25	14-26	380	52.8
2200×7500	21	33	≤25	16-29	475	56
2200×9000	21.4	37.3	≤25	17-19	475	65
2200×11000	21.4	47	≤20	18-21	570	75
2400×7000	20.4	37.5	≤25	16-17	475	66.5
2400×8000	20.4	41.5	≤25	18-20	570	71.05
2400×10000	20.8	49	≤25	22	630	110
2400×11000	20.8	58	≤25	22-26	630	119
2400×12000	20.8	64	≤20	24-28	800	123.5
2400×13000	20.8	70	≤20	26-32	800	125
2600×8000	19.8	47	≤25	22-24	630	115
2600×13000	19.8	78	≤25	27-30	1000	150
3000×9000	18.2	80	≤25	33	1000	164
3000×11000	18.2	100	≤25	34-38	1250	184
3000×13000	18.2	115	≤25	40-42	1400	197
3200×13000	18.4	125	≤25	43-48	1600	222
3500×9000	17.3	95	≤25	48-55	1400	218
3500×11000	17.3	135	≤25	53-60	2000	235

Your desire, we design. More details, contact us freely. We are one of the most professional manufacturers of mini ball mill .
