High performance energy saveing ball mill, -environment friendly, -special design, saving energy about 30%, -ISO.CE - details see: https://www.machineto.com/high-performance-durable-energy-saveing-ball-mill-with-iso-ce-approved-10314051

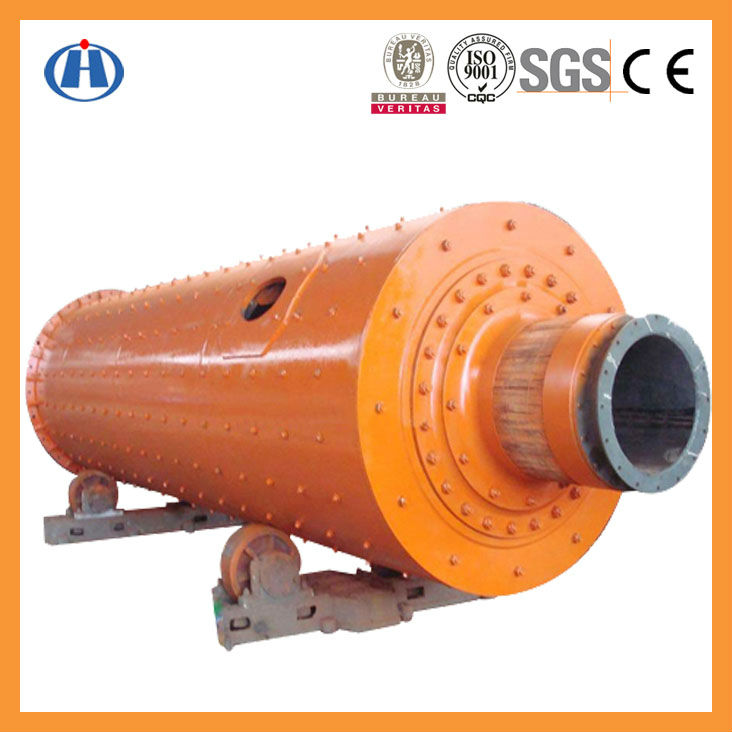

High performance durable energy saveing ball mill for ball mill with ISO CE approved

Description of energy saveing ball mill :

A ball mill, a type of grinder, is a cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw

materials and paints. Ball mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding

medium. Different materials are used as media, including ceramic balls, flint pebbles and stainless steel balls. An internal

cascading effect reduces the material to a fine powder. Industrial ball mills can operate continuously, fed at one end and

discharged at the other end. Large to medium-sized ball mills are mechanically rotated on their axis, but small ones normally

consist of a cylindrical capped container that sits on two drive shafts (pulleys and belts are used to transmit rotary motion).

A rock tumbler functions on the same principle. Ball mills are also used in pyrotechnics and the manufacture of black

powder, but cannot be used in the preparation of some pyrotechnic mixtures such as flash powder because of their

sensitivity to impact. High-quality ball mills are potentially expensive and can grind mixture particles to as small as 5 mm,

enormously increasing surface area and reaction rates. The grinding works on the principle of critical speed. The critical

speed can be understood as that speed after which the steel balls (which are responsible for the grinding of particles) start

rotating along the direction of the cylindrical device; thus causing no further grinding.

Ball mills are used extensively in the mechanical alloying process in which they are not only used for grinding but for

cold welding as well, with the purpose of producing alloys from powders.

Working Principle of energy saveing ball mill :
In the Ball Mill the motor and speed reducer transmit torque to the large and small gears of the Ball Mill, rotating the barrel. When

the barrel rotates, steel balls or other grinding media in the barrel are lifted to a certain height and fall to collide with materials in

the barrel. Grinding media mix continuously and grind the materials. The grinding media and materials collide as the Ball Mill

rotates. The final product is discharged from outlet after it meets specifications.

Main Features of energy saveing ball mill :
1) to grind various of mine materials and other materials;
2) two ways of grinding: Dry-type grinding and wet-type grinding;
3) good wear resistance with wear-resistance liner plates;
4) reducing energy cost by 30%, with double rows of aligning spherical roller bearing;
5) high-grade steel welding, reliable work condition;
6) fine grinding, capacity rising by 15-20% compared with traditional ball mill;
7) finished particle size depends on hardness of materials and the time of ball mill runs;
8) also used to grind glass, food, chemicals, make ceramic glaze.

Advantages ofenergy saveing ball mill :

1.Reduce the energy consumption by 30%
2.Increase handling capacity by 15-20%
3.Mini discharging size:0.074(mm)

4.High efficiency

5.Reliable operation

6.Wet process and dry process

The technical data of energy saveing ball mill :

Model (mmxmm)	Speed of bucket (r/min)	Weight of ball (t)	Size of feed opening (mm)	Production (t/h)	Power (kw)	Weight (T)
φ900×1800	38	1.5	≤20	0.65-2	18.5	3.6
φ1200×2400	32	3.8	≤25	1.5-4.8	45	12.5
φ1200×4500	32	7	≤25	1.6-5.8	55	13.8
φ1500×3000	27	8	≤25	2-5	90	17
φ 1500×5700	27	15	≤25	3.5-6	132	24.7
φ1830×3000	24	11	≤25	4-10	180	28
φ 1830×6400	24	23	≤25	6.5-15	210	34
φ 1830×7000	24	25	≤25	7.5-17	245	36
φ 2200×5500	21	30	≤25	10-22	370	48.5
φ 2200×6500	21	30	≤25	14-26	380	52.8
φ 2200×7500	21	33	≤25	16-29	475	56
φ 2200×9000	21.4	37.3	≤25	17-19	475	65
φ 2200×11000	21.4	47	≤20	18-21	570	75
φ 2400×7000	20.4	37.5	≤25	16-17	475	66.5
φ 2400×8000	20.4	41.5	≤25	18-20	570	71.05
φ 2400×10000	20.8	49	≤25	22	630	110
φ 2400×11000	20.8	58	≤25	22-26	630	119
φ 2400×12000	20.8	64	≤20	24-28	800	123.5
φ 2400×13000	20.8	70	≤20	26-32	800	125
φ 2600×8000	19.8	47	≤25	22-24	630	115
φ 2600×13000	19.8	78	≤25	27-30	1000	150
φ 3000×9000	18.2	80	≤25	33	1000	164
φ 3000×11000	18.2	100	≤25	34-38	1250	184
φ 3000×13000	18.2	115	≤25	40-42	1400	197
φ 3200×13000	18.4	125	≤25	43-48	1600	222
φ 3500×9000	17.3	95	≤25	48-55	1400	218
φ 3500×11000	17.3	135	≤25	53-60	2000	235

Your desire, we design. More details, contact us freely. We are one of the most professional manufacturers of energy saveing ball mill .
