1.high output fabric waste cutting machine 2.dimension:7000*1600*1900mm, 3.output:1000-3000kg/h, 4.high output - details see: https://www.machineto.com/high-output-fabric-waste-cutting-machine-10279827

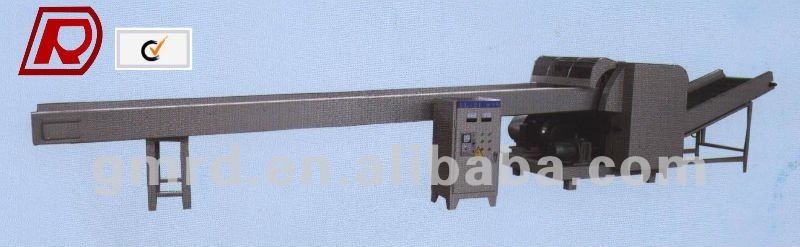

high output fabric waste cutting machine

Main parameter:

Model	RD-1600A
L*W*H(mm)	7000*1600*1900mm
Output	1000-3000kg/h
Motor Power	16.2kw
Input conveyor	3000*710mm
Output conveyor	3000*710mm

Application:

1.Waste fag ends, cotton, waste clothes, waste yarn, cotton spinning, chemical fiber, flax, leather, plastic film, paper, plate with trademark, nonwovens, leftovers and so on.

2.It is the very ideal equipment for producing textile, nonwovens, felt, carpet, blanket, rayon, polypropylene for construction, adding fiber for rubber products, special paper, adding fiber for high grade paint industry and so on

Other series fabric waste cutting machine:

Model	RD1600A	RD1600B	RD500A	RD500B	RD800C	RD800D
Matched power	16.2kw	17kw	3+1.1kw	3+1.1kw	4.0+1.5kw	5.5+1.5kw
Dimension(mm)	7000*1600*1900	13000*1600*1900	1800*1000*1100	2800*1000*1100	3200*1000*1100	6000*1000*1100
Output	1000-3000kg/h		300kg/h		500-800kg/h
Shear number	600/min	1036/min	288/min		576/min	1036/min
Shear size	5-150mm		5-300mm		5-150mm
Revolving knife	High qualiy and speed steel 4-6pcs	High qualiy and speed steel 4-8pcs	High quality Carbon construction steel 2-4pcs		High-speed tool steel 2-4pcs	High-speed tool steel 2-6pcs
Fixed knife	Double row four blade special alloy steel		Single blade manganese steel	Single blade alloy steel	Single blade alloy steel	Hard alloy
Input conveyor	3000*710mm	6000*710mm	1400*350mm		1400*350mm	2800*350mm
Output conveyor	3000*710mm	6000*710mm	without	1400*350mm	1400*350mm	2800*350mm
Shear thickns	30-100mm		20mm		30-50mm
Compress equipment	without
