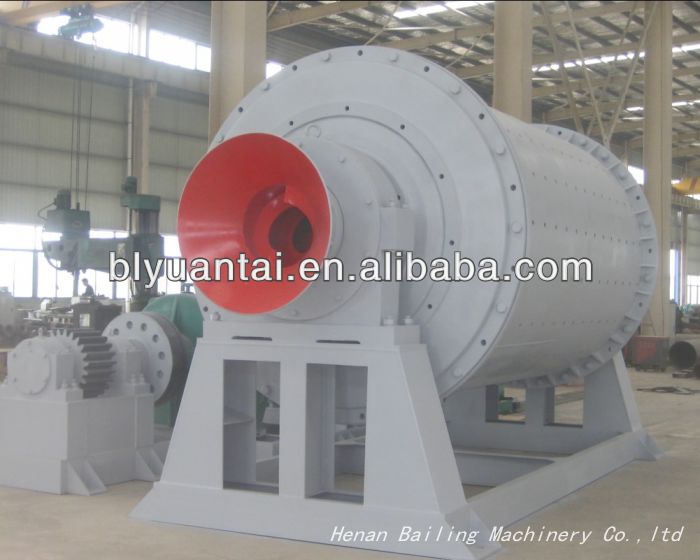

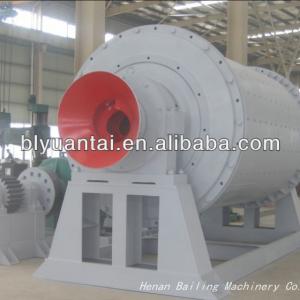

High-effiency ball mill with ISO certificate

High effiency ball mill with ISO certificate, 1.Dry and wet grinding types are available, 2.Longer linning service life - details see: https://www.machineto.com/high-effiency-ball-mill-with-iso-certificate-10314758

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):18.5-800kw
Capacity(t/h):1-200 t/h	Place of Origin:Henan China (Mainland)	Brand Name:Bailing	Model Number:BL
Dimension(LWH):depend on the model	Weight:depend on the model	Certification:ISO 3C	Warranty:whole using life
After-sales Service Provided:Engineers available to service machinery overseas	Application:ore,bauxite,sand,glass,ceramic	Grinding way:Wet or dry	power consumption:energy-savig type
Feeding granularity(mm):≤25	Min discharg size:0.074mm	Package:export standard	Color:any color is avaliable

Application of ball mill

Ball mill is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, corhart, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc.

It is used for grinding various ore and other grindable materials dry or wet.

Structure of ball mill

Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on.

The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance.

Working Principle of ball mill

The ball mill is a horizontal rotating device transmitted by the outer gear.

The materials are transferred to the grinding chamber through the quill shaft uniformly.

There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Ball Mill Technical Data

Model	Speed of bucket(r/min)	Weight of ball(t)	Size of feed opening(mm)	size of outputting feed(mm)	Production(t/h)	Power(Kw)	Weight(t)
900*1800	38	1.5	20	0.075-0.89	0.65-2	18.5	3.6
900*3000	38	2.7	20	0.075-0.89	1.1-3.5	22	4.5
1200*2400	32	3.8	25	0.075-0.6	1.5-4.8	45	11.5
1200*3000	32	5	25	0.075-0.4	1.6-5	45	12.8
1200*4500	32	7	25	0.075-0.4	1.6-5.8	55	13.8
1500*3000	27	8	25	0.075-0.4	2-5	90	17
1500*4500	27	14	25	0.075-0.4	3-6	110	21
1500*5700	27	15	25	0.075-0.4	3.5-6	132	24.7
1830*3000	24	11	25	0.075-0.4	4-10	180	28
1830*6400	24	23	25	0.075-0.4	6.5-15	210	34
1830*87000	24	25	25	0.075-0.4	7.5-17	245	36
2200*5500	21	30	25	0.075-0.4	10-22	370	48.5
2200*6500	21	30	25	0.075-0.4	14-26	280	52.8
2200*7500	21	33	25	0.075-0.4	16-29	475	56
2200*9500	21	38	25	0.074-0.4	18-35	475	62

Spare parts of ball mill

How to order

Certificates of ball mill

Packaging Detail:High-effiency ball mill with ISO certificate1. standard containers, in which mainframe are color-stripes cloth packed, the spare parts be packed in wooden box 2. by bulk ships, the mainframe will be fixed well.

Delivery Detail:have on stock, deliver asap
