high efficiency raymond mill, 1.Apply for grinding 280 kinds of material, 2. Fineest reach1000 mesh - details see: https://www.machineto.com/high-efficiency-raymond-mill-with-good-quality-kefan-company-10314128

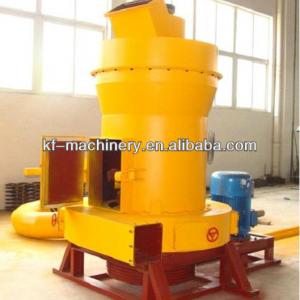

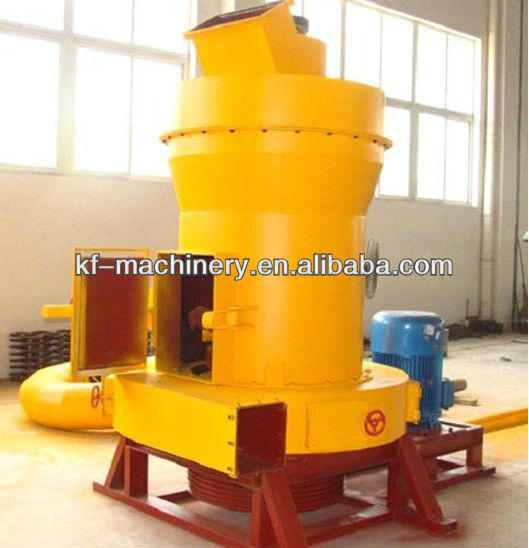

High Efficiency Raymond Mill with Good Quality kefan company

Applications:

3R2115 Raymond Grinding Millwidely used in mining, construction, chemical industry and metallurgy.

Raw materials:

Suitable for the non-flammable and non-explosive materialswith hardness lower than 7 and humidity lower than 6%,such as barite, calcite, feldspar,talcum, marble, limestone, clay, glass, etc.

Features:
1.3R2115 Raymond Grinding Milladopts electromagnetic vibrating feeder, which ensures even and regular feeding.Raymond mill is easy to adjust, small in dimension, light in weight, with lower oil and power consumption and easy to maintain.

2.The complete raymond grinder is of a standing structure. Raymond mill features small occupying space and strong integration capacity. Raymond mill can take shape a completely independent production system from the lump materials , crushing to finished powder and packaging.

3.Every one of the finished particles use a good uniformity of fineness,with passing screen rate as high as 98%.This is what other machine cannot reach.

4.Products feature:The fineness from the finished product could be adjusted from 100 mesh to 325 mesh .

The Main Technical Parameters:

Model			3R2115
Roller	Number		3
	Diameter (mm)		210
	Height (mm)		150
Ring	Inside diameter (mm)		630
	Height (mm)		150
Maximum feed size (mm)			15
Output size (mm)			0.044-0.165
Power of main frame (kW)			15
Fineness of final product (mm)	0.165	capacity (t/h)	1.2-1.8
	0.075		0.6-1.2
	0.044		0.6-1.0
