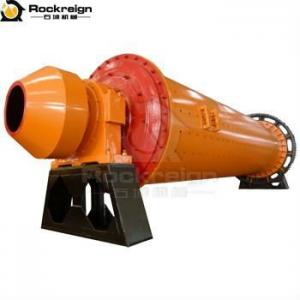

High efficiency Equipment iron ore Mill
iron ore Mill, 1 Manufacturer for 18 years, 2 Output:0.074-0.04mm, 3 Energy save 30%, 4 Wet or dry, Overflow or grate b - details see: https://www.machineto.com/high-efficiency-equipment-iron-ore-mill-10313874
| Condition:New | Type:Ball Mill | Capacity(t/h):0.65-90t/h | Place of Origin:Shanghai China (Mainland) |
| Brand Name:Rockreign | Model Number:Rockreign Series | Application:Grinding purpose | Discharging granularity(mm):0.074-0.4 |
| Grinding way:Wet or dry | Feeding Size(mm):less than 25 | Warrenty:One year |
iron ore Mill Application
Ball mill, a type of Grinding Mill, is a cylinder-shaped device used to grind materials like ores, chemicals, ceramic raw materials and paints. The ball mills are the key milling equipment after material has been crushed. It is divided into two rubbing way, the dry and the wet Ball mills mainly composed of charging and discharging, cyclone and rotation parts (like redactor, minor rotation gear, motor, electric machine, etc.).
iron ore Mill Working Principle
Theball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Specifications of iron ore Mill
| Model | cylinder speed(r/min) | Ball Weight(t) | feed particle size(mm) | Give Makings Size(mm) | Output(t/h) | motor power(kw) | Total weight(T) |
| 900×1800 | 36~38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
| 900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
| 1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| 1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| 1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
| 1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| 1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| 1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
| 1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
| 1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| 2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
| 2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| 2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| 2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| 2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 380 | 94 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 480 | 102 |
| 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | According to the process conditions | 800 | 137 |
| 3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | According to the process conditions | 850 | 158 |
| 3600×6000 | 17 | 110 | ≤25 | 0.074-0.4 | According to the process conditions | 1250 | 175 |
| Packaging Detail:Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case |
| Delivery Detail:25-30days after order confirmed |
