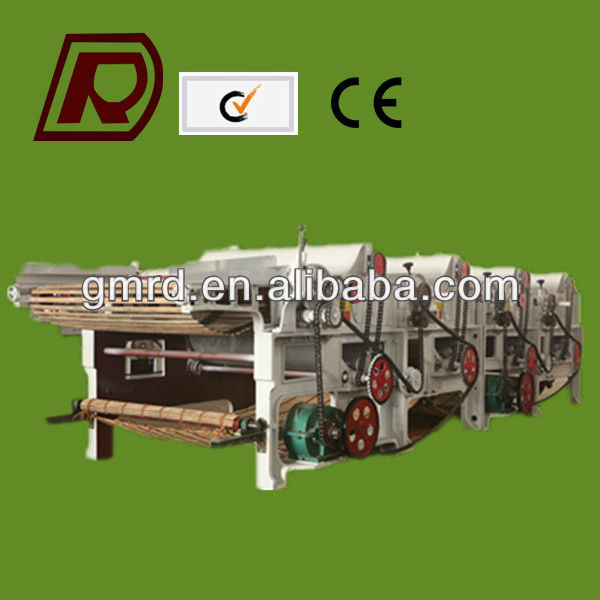

high efficiency cotton waste cleaning machine

1.high efficiency cotton waste cleaning machine, 2.automatic back cotton machine, 3.High production speed, 4.save energy - details see: https://www.machineto.com/high-efficiency-cotton-waste-cleaning-machine-10279453
Condition:NewPlace of Origin:Shandong China (Mainland)Brand Name:RongdaModel Number:GM250
Voltage:380Vcertification:alibaba depth authenticaoncolour:green, white or any colourproduct:cotton
high efficiency cotton waste cleaning machine
contact supplier for high efficiency cotton waste cleaning machine


high efficiency cotton waste cleaning machine

Features and uses:

The machine is designed and manufactured by an integrated feature and advanced experience of domestic and foreign cotton processing machinery. Through identify,the machine has reached the requirements of high-quality, high output, low-consumption,which has the compact model, easy operation, good dust, safe and reliable.

With the High-speed centrifugal force generating by the licker-in,the machine excludes the mechanical impurities in cotton and looses the lint,rolling into the film,easy to use.

The machine can dust and care health, adapted to process at all levels of lint cotton, old quilt, breaking seed cotton, waste yarn, cloth corner, linen and other items.

specifications:

1.Output:80-100kg/h

2.Licker-in diameter: Φ250mm

3.Licker-in speed: The first licker-in:1900rev/min; II,III,4:2100 r/min;

4.Diameter and speed of into roller: The former roller Φ40mm, speed of 5.1rev/min;

The after one Φ57mm,speed of 13.4rev/min

5.Dust cage: diameterΦ500mm,

meshΦ18X4X3 (144-156holes/ decimetre)

6.Pressure cotton roll:The former(diameter Xlength) 140X980mm;

Later(diameter X length) 140X980mm

7.Draught fan: Speed 2100r/min

8.Motor: 1)Y112M-7.5KW,

2) Y112M-5.5KW,

3) Y132S-5.5KW,

4) Y132S-5.5KW,

9.Article spurs model: 1.09X75teeth / 5.64mm

10.Host Size (l*X w *h):5600X1500mmX1150mm

11.Machine Weight≈ 2500KG

high efficiency cotton waste cleaning machine
Packaging Detail:according to your requirement
Delivery Detail:20 days after receipt of payment
