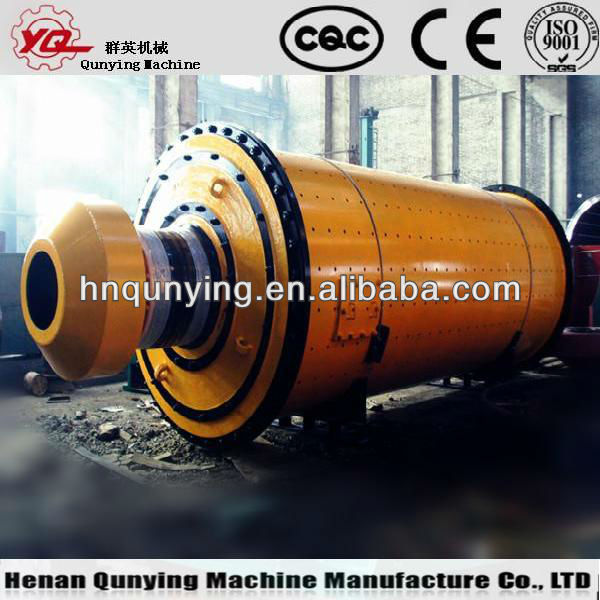

High efficiency ball mill with ISO certificate and competitive price

ISO9001:2008 certificate ball mill, 1.good quality, 2.widely used, 3.easy operation, 4.high efficiency - details see: https://www.machineto.com/high-efficiency-ball-mill-with-iso-certificate-and-competitive-price-10314149

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):15
Capacity(t/h):0.2~21	Place of Origin:Henan China (Mainland)	Brand Name:Qunying	Model Number:M2430
Dimension(LWH):378824802127	Weight:5000kg	Certification:ISO CE CQC	Warranty:One year

Energy saving iron ore small ball mill application:

Ball Mill is a key equipment to grind all kinds of ores and other materials which is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

Energy saving iron ore small ball mill working principle:

1. This cement ball mill is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment.

2. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material.

3. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.

Energy saving iron ore small ball mill advantages:

1) Cement ball mill is an efficient tool for grinding many materials into fine powder.

2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine

3) Ball mill is widely used in building material, and chemical industry.

4) There are two ways of grinding: the dry way and the wet way.

5) Ball mill can be divided into tabular type and flowing type according to different expelling mine

6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.

7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

8) The longer the ball mill runs, the finer the powder will be.

9) Ultimate particle size depends entirely on how hard the material you’re grinding is, and the time how long the ball mill runs.

10) Our Cement ball mill have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, and powder various chemicals.

Ball mill technical parameter:

Type	Cylinder		Rotation speed (r/min)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor Power (kw)	Dimensions (mm)	Weight (kg)
Type	ID (mm)	Length (mm)	Rotation speed (r/min)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor Power (kw)	Dimensions (mm)	Weight (kg)
M1224	1200	2400	33.5-24.5	≤25	0.3-0.074	3.2-1.4	45	6047x2868x2541	13500
M1530	1500	3000	29.8-26.6	≤25		6.3-2.8	95	7447x3329x2749	17500
M1830	1830	3000	26.3-22.5	≤25		12.5-4.5	130	8007x3780x3020	33500
M1845	1830	4500	26.3-22.5	≤25		16.5-6.7	180	9510x3842x3020	35800
M2130	2100	3000	25.0-19.5	≤25		14.0-5.8	210	8623x4980x3794	45000
M2140	2100	4000	25.0-19.5	≤25		15.9-7.5	245	9623x4980x3794	48600
M2230	2200	3000	25.0-19.5	≤25		15.2-6.8	210	8650x4980x3794	46200
M2430	2400	3000	23.0-18.5	≤25		18.5-7.8	245	9379x5330x4050	48950
M2736	2700	3600	22.0-17.5	≤25		28.5-11.5	380	9765x5327x4075	78500
M3236	3200	3600	20.2-16.0	≤25		39.6-17.5	630	10360x7200x5600	118000
M3245	3200	4500	20.2-16.0	≤25		49-21	800	13000x7300x5700	128500
M3645	3600	4500	19.2-14.8	≤25		65-29	1250	15000x7700x6300	165000
M3660	3600	6000	19.2-14.8	≤25		80-32	1600	17000x8800x6300	196000
M4050	4000	5000	16.8-13.9	≤25		97-46	1600	16500x9500x7500	248000
