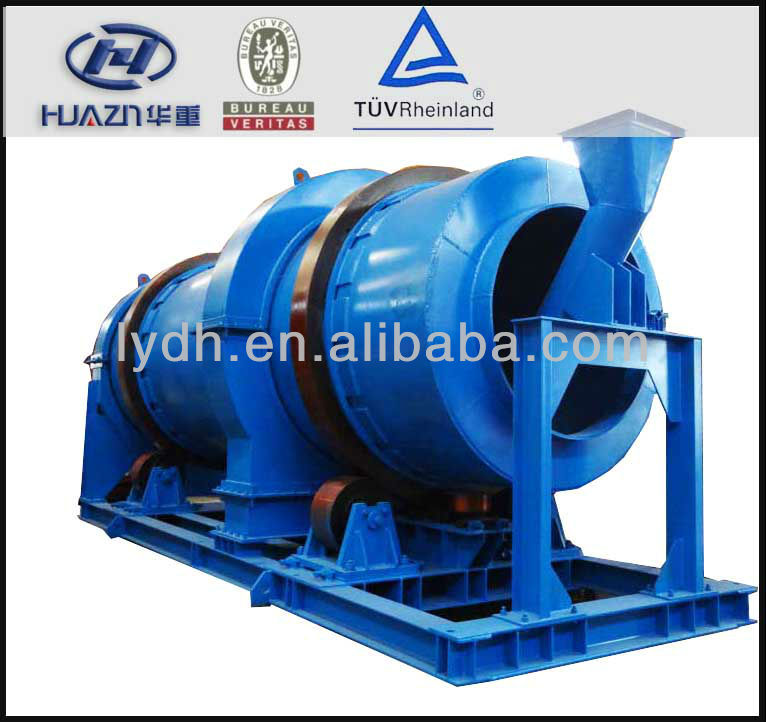

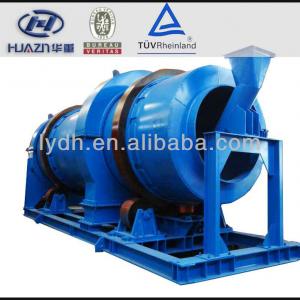

GMQ Series Ball Mill:, 1. High crushing scale, 2. High efficiency, low cost, 3. Easy to maintain, 4. Long service life - details see: https://www.machineto.com/high-crushing-scale-industrial-grinding-machine-gmq-series-ball-mill-10313856

GMQ Series Ball Mill Technical specification

Model	Barrel(mm)	Barrel volume(m3)	Ball load(t)	Rotate speed(r/min)	Power (kw)	Discharge size (mm)	Capacity (t/h)	Note
	Dia×L
GMQG1835	1800×3500	7.58	16	25.3	160	0.8-0.074	25-5.8	380V
GMQG1840	1800×4000	8.65	17.3	25.3	185	0.8-0.074	28-6.6	380V
GMQG1845	1800×4500	9.75	19.5	25.3	210	0.8-0.074	31-7.2	380V
GMQG2122	2100×2200	6.7	14.7	23.8	160	0.8-0.074	24-5.3	380V
GMQG2130	2100×3000	9.2	17	23.8	185	0.8-0.074	26-6.0	380V
GMQG2136	2100×3600	11.0	19	23.8	210	0.8-0.074	29-6.5	380V
GMQG2140	2100×4000	12.2	20.5	23.8	220	0.8-0.074	32-7.2	380V
GMQG2145	2100×4500	13.8	22	23.8	250	0.8-0.074	36-8.1	380V
GMQG2424	2400×2400	9.8	20	22.8	220	0.8-0.074	32-6.6	380V
GMQG2430	2400×3000	12.2	25	22.8	250	0.8-0.074	38-7.5	380V
GMQG2436	2400×3600	14.6	30	22.8	280	0.8-0.074	42-8.5	380V
GMQG2440	2400×4000	16.2	33	22.8	355	0.8-0.074	47-9.5	380V
GMQG2445	2400×4500	18.2	37	22.8	400	0.8-0.074	55-10.5	380V

GMQ Series Ball Mill General Description

Ball mill is widely used in black, non-ferrous metal mining, non-metallic mining, building materials, chemicals, electricity, coal, transportation, light industry and other industrial sectors. Our high-efficiency and saving-energy ball mill adopts rolling bearing substituting for sliding bearing, which can save energy 10-20% compared with sliding bearing. Adopting oil grease in place of thin oil lubrication station, and large-type mill needs not to be equipped with high-and-low pressure lubrication station with high cost.

Lattice-type ball mill has lattice panels at the discharge end, with more volume of ball, larger installation power, higher capacity and more coarse discharge granularity and usually used in primary crushing; Spill-over ball mill are usually used in fine grinding with lattice panels at the end and with higher discharge opening, less volume of ball, smaller installation power, lower production capacity and finer discharge granularity. The production capacity is different due to the properties of different materials. The following table takes as an example of medium hardness iron ore with feed size less than 25mm.
