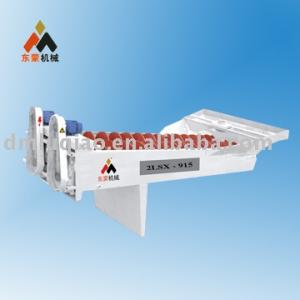

High capactiy sand washing plant used for sand factory,electric ple factory,worksite of building and concrete dam

Shanghai DongMeng sand washing plant can wash,classifying and de-watering various sands with large capacity and easy mai - details see: https://www.machineto.com/high-capactiy-sand-washing-plant-used-for-sand-factory-electric-ple-factory-worksite-of-building-and-concrete-dam-10320818

Condition:New	Capacity(t/h):350t/h	Place of Origin:Shanghai China (Mainland)	Brand Name:DongMeng
Model Number:2LSX1115	Certificate:ISO9001:2008,CE	Capactiy(t/h):350	Selected size(mm):<=10
Motor Power(kw):15*2	Helix diameter(mm):1115	Length of tub(mm):9782	Speed of Helix (r/min):17
Water consumption(t/h):40-300	Weight(t):17.94	Dimension(mm):1097052504720

High capactiy sand washing plant used for sand factory,electric ple factory,worksite of building and concrete dam

contact supplier for High capactiy sand washing plant used for sand factory,electric ple factory,worksite of building and concrete dam

1.Application of sand washing plant

Shanghai sand washing plant mainly used for sand factory,electric ple factory,worksite of building and concrete dam to wash,classifying and de-watering various sands.

2. Special advantages of sand washing plant

A). Reliable quality certified by CE.

B). Highly effective of washing rate.

C). Less loss of fine aggregate and sand.

D). It is almost no wearing parts except the screen cloth.

3.Working principal of sand washing plant

Thisrotating sand washer adopt inclination of 15º,under the water tub,three weir plates form the sediment pool.The screw head is immersed in this pool,and the screw is driven by electric motor through reducer rotating continuously,and then the fresh water is feeding from porous plate at bottom of sediment pool.

4. Technical specification

see below table of sand washing plant:

Model

Screw diameter (mm)

Length of tub (mm)

Selected Size(mm)

Capacity (t/h)

Weight(t)

Speed of Screw (r/min)

Motor (kw)

Dimensions (L×W×H, mm)

2LSX1115
