High Capacity Socks Making Machine

Safety, Energy Conservation,Environmental Protection,Durable - details see: https://www.machineto.com/high-capacity-socks-making-machine-10270581

Condition:New	Type:Jacquard Knitting Machine	Production Capacity:720pairs/10min	Place of Origin:Zhejiang China (Mainland)
Brand Name:AX	Model Number:AX-DXJ180	Voltage:220V,380V	Weight:1000kg
Certification:CE	Warranty:1YEAR	After-sales Service Provided:Engineers available to service machinery overseas

contact supplier for High Capacity Socks Making Machine

Specifications

With two series including electric heating and fuel type for your option, adopt special air-intake mode and circulate air design

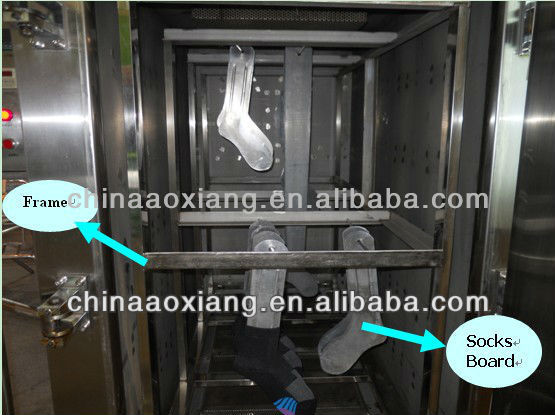

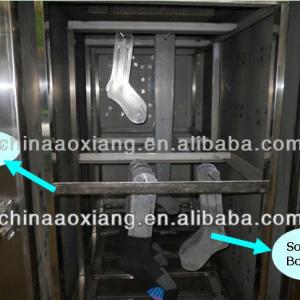

1) The AOXIANG Brand full-automation and setting machine which integrates steam, wet-spray, heating-setting and drying can be used as the substitute of traditional boiler setting mode.

2) Combining wet-injection, setting and drying, available regulate the time as you want, besides, keep hot circulate inside working chamber so that the temperature inside can be stable with less heat loss, thus, the energy consumption can be reduced obviously

3) It will only take 8-10min to finish setting with about 2.5kg diesel oil consumption per hour, if the unit price is 6.8yuan/kg ,the total cost is just 17yuan,and if the working efficiency of setting is 3500 pairs of socks per hour, the setting cost per pair is just 0.5Yuan.

4) In the box installs leads the wind net. The patent design, leads the wind net addition with the exotic material manufacture in the box the work room crown, can cause in the work room the wind sped and the steam cycle in evener.

5) Recuperation. This is additional part, may cause in combustion chambers afterheat back flow to the work room base, cause in the work room warm to be quicker, to be evener.

6) Electric appliance control section. The accuracy control fuel oil, may save the diesel oil in the original foundation 30-40 %.

Model

Dimension

Unit

Data

AX-DXJ180

Inner dimension

overall dimension

1500*800*1600

2600*1400*2400

Main Technical Parameters:

Name	Unit	Data
Combustion	KW	0.13
Water pump	Mpa / kg	7-12
Diesel oil consumption	Kg/h	2-2.5
Working temperature	°C	60-250
Blower	Kw/min	1.5/2800
Power	V / Hz	380/50, 220 / 50
Weight	Kg	900

The temperature into the boiler pressure to comparison table:

Boiler pressure	1kg	2kg	3kg	4kg	5kg	6kg	7kg	8kg
Temperature	118°C	130°C	145°C	151°C	158°C	163°C	166°C	171°C
Remind: This product should be coupled with stereotypical box shape 10 degrees Celsius
