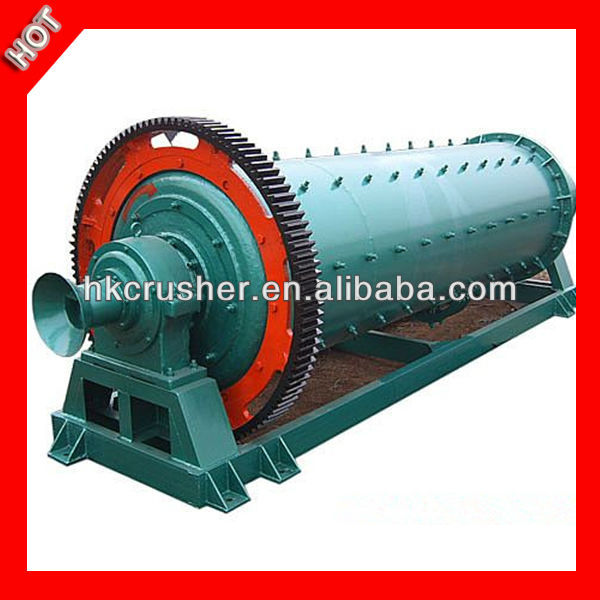

High capacity professional China ball mill manufacturer

ball mill manufacturer, 1.for cement, silicate, ceramic, 2.wet or dry ball mil, 3.Easy to operation, 4.Energy-saving - details see: https://www.machineto.com/high-capacity-professional-china-ball-mill-manufacturer-10314549

Condition:New	Type:Ball Mill,Ball Mill manufacturer	Motor Type:DC Motor	Power(W):18.5-800kw
Capacity(t/h):0.5-500tons/hour	Place of Origin:Henan China (Mainland)	Brand Name:HK	Model Number:1830*7000 Ball Mill manufacturer
Dimension(LWH):Ball Mill manufacturer	Weight:3.6t-137t	Certification:CE, ISO	Warranty:1 year,lifetime warranty
After-sales Service Provided:Engineers available to service machinery overseas	Feeding granularity(mm)::≤25	Grinding way:Wet or dry	Discharging granularity(mm):0.074-0.891
Supply spare parts:for whole life	After sales service:for whole using	Visit factory:supply	Design:innovation
Installation:engineer guide

Application and Structure of Ball mill

1. Newest structure.

2. Easy maintenance and operation.

3. Durable wearing parts.

4. Low operating cost.

5. Big and fine grinding ratio.

Introduction of ball mill

1. Ball Mill is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.

2. To use the Ball Mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

3. Quite simply, the longer the Ball Mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Mill runs.

4. Our Ball Mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals, and make Black Powder.

Details ofball mill

1. Shell of super thick steel plate and heavy duty design.

2. Lining plate of high manganese steel allows for longer service life.

3. Bearing foundation of high quality babbitt metal ensures the optimum performance.

4. High strength and high precision pinion gear and bull gear.

Specification ofball mill

Model	Rotary Speed (r/min)	The feeding size (mm)	The final Size (mm)	Capacity(t/h)	Main Motor (kw)	Weight (t)
900×1800	38	≤ 20	0.075-0.89	0.65-2	18.9	3.6
900×3000	38	≤ 20	0.075-0.89	1.1-4.8	22	4.6
1200×2400	32	≤ 25	0.075-0.6	1.5-4.8	45	12.5
1200×2800	35	≤ 25	0.074-0.4	1.2-3.7	30	11.5
1200×3000	32	≤ 25	0.074-0.4	1.6-5	45	12.8
1200×4500	32	≤ 25	0.074-0.4	1.6-5.8	55	13.8
1500×3000	27	≤ 25	0.074-0.4	2-5	75	17
1500×4500	27	≤ 25	0.074-0.4	3-6	90	21
1500×5700	27	≤ 25	0.074-0.4	3.5-6	110	24.7
1830×3000	24	≤ 25	0.074-0.4	4-10	180	28
1830×6400	24	≤ 25	0.074-0.4	6.5-15	210	34
1830×7000	24	≤ 25	0.074-0.4	7.5-17	245	36
2200×5500	21	≤ 25	0.074-0.4	10-22	370	48.5
2200×6500	21	≤ 25	0.074-0.4	14-26	380	52.8
2200×7000	21	≤ 25	0.074-0.4	8-36	380	50
2200×7500	21	≤ 25	0.074-0.4	16-29	475	56
2100×2700	24	≤ 20	0.074-0.4	3.5-25	150	33
2100×3500	24	≤ 25	0.074-0.4	4.5-33	180	37
