Gypsum Grinding Mill :, 1.large capacity:0.5-90t/h, 2.high efficiency, 3.for dry and wet material - details see: https://www.machineto.com/high-capacity-gypsum-grinding-mill-from-bangke-raymond-mill-manufacturer-10314608

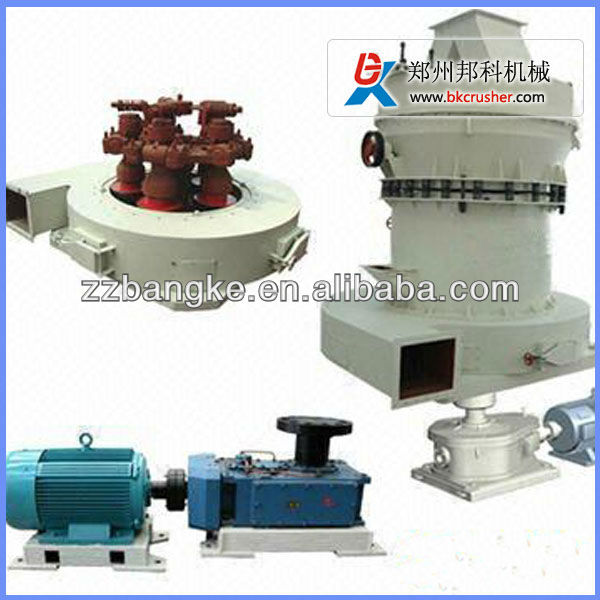

High capacity grinding mill from Bangke manufacturer

Introduction of our company:

Zhengzhou Bangke machinery manufacturing Co., Ltdis specialized in large and medium-sized series of crushers, sand making machines, beneficiation machines, grinding machines, R&D, production, sales for the integration of machinery manufacturing company.

grinding mill application :

Raymond Millis applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction ,chemical industry and metallurgy, such as barite, calcite, feldspar,talcum, marble, limestone, clay, glass. The fineness of the finished product can be adjusted from 100 mesh to 325 mesh according to requirements.

grinding mill structural characteristics :

The wholegrinding millis of a standing structure. Raymond mill features small occupying space and strong integration capacity. Raymond mill can form an independent production system from the lump materials , crushing to finished powder and packaging.
All the finished particles have a good uniformity of fineness, with passing screen rate as high as 98%. This is what other machine cannot reach.
grinding milladopts electromagnetic vibrating feeder,which ensures and regular feeding.grinding millis easy to adjust, small in dimension, light in weight, with lower oil and power consumption and easy to maintain.
The transmission device of the main unit is equipped with a close gearbox which ensures its smooth transmission and reliable operation.
Attendance of operater is not necessary in the mill operating room because the adoption of advanced central control console switch.

Grinding Mill Technical Data:

Model			3R2115	3R2615	3R2715	3R3016	4R3216
Roller	Number		3	3	3	3	4
	Diameter (mm)		210	260	270	300	320
	Height (mm)		150	150	150	160	160
Ring	Inside diameter (mm)		630	780	830	880	970
	Height (mm)		150	150	150	160	160
Maximum feed size (mm)			15	15-20	15-20	15-20	20-25
Output size (mm)			0.044-0.165	0.044-0.165	0.044-0.165	0.044-0.165	0.044-0.165
Power of main frame (kW)			15	18.5	22	30	37
Fineness of final product (mm)	0.165	capacity (t/h)	1.2-1.8	1.8-2.5	2.3-2.8	2.6-3.2	3.2-4.5
	0.075		0.6-1.2	1.2-1.8	1.8-2.3	1.9-2.6	2.4-3.1
	0.044		0.6-1.0	0.8-1.2	0.9-1.7	1-1.9	1.8-2.5

We are the Professtional raymond mill manufacturer, our machine can produce all kind of powder from 80mesh to 400mesh..

So if you need in future, pls contact us and tell me the information as follows.

1: what is your raw material ?

2: what size is your raw material ?

3: what is your capacity ?

4: what requirement is your final product ?

When we know the information, we will supply you the best type for you .

My skype:lily-jiao611

More information, pls let us know. Besides, pls visit our english website: www.bkcrusher.com

Warranty: one year

Welcome to Visit Our Factory !!!
