HGM Series Three-rings Ultra-fine Mill rings and medium
| Condition:New | Type:Ultra-fine Mill | Motor Type:AC Motor | Power(W):Main Engine:37 Powder Concentrator:11 Air Blower:30 |
| Capacity(t/h):350~2500(kg/h) | Place of Origin:Shanghai China (Mainland) | Brand Name:Pioneer | Model Number:HGM 60 |
| Dimension(L*W*H):10*2*5.53 (m) | Weight:Main concentrator weight:5200kg | Certification:IOS9001:2000 | Warranty:1 year only main engine |
| Material:High quality steel plate | Color:White about Ultra-fine Mill | Shape:Cubic shaped | Use:gravel Ultra-fine Mill |
| Crafts:best of Ultra-fine Mill | name:Ultra-fine Mill |
HGM Series Three-rings Ultra-fine Mill rings and medium
HGM series three-rings ultra-fine mill rings and medium is the world leading grinding equipment which adopts the Pioneer advanced milling technology and is especially designed for processing ultra-fine mill rings and mediumpower or grinding any non-flammable and non-explosive materials such as quartz, feldspar, calcite, limestone, talc, ceramics, marbale, granite, dolomite, bauxite, iron ores, barite, bentonite, calcium, kaolin, palter, mica, graphite, etc. The size of the finished product can be adjusted between 325-3250mesh.
About HGM Series Three-rings Ultra-fine Mill rings and mediumPicture

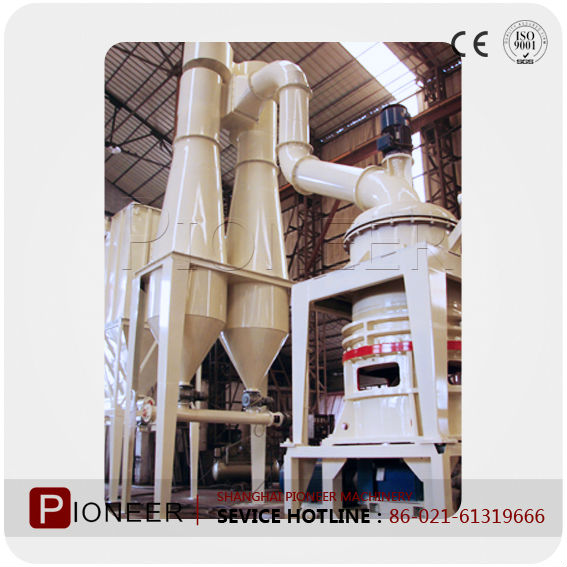

About HGM Series Three-rings Ultra-fine Mill rings and mediumPicture in production field
About HGM Series Three-rings Ultra-fine Mill rings and mediumPicture in workshop
About our company_Shanghai Pioneer Machinery Manufactering Co.,Ltd.
HGM Series Three-rings Ultra-fine Mill rings and mediumTechnical Date
MODEL | HGM60 | HGM80 | HGM100 | |
AVERAGE DIAMETER(mm) | 600 | 800 | 1000 | |
piece | ROLLER | 15 | 21 | 27 |
| RING OF ROLLER | 2 | 2 | 2 | |
FEEDING SIZE(mm) | ≤10 | ≤10 | ≤10 | |
| μm | 5-45 | 5-45 | 5-45 | |
| MESH | 3250-325 | 3250-325 | 3250-325 | |
CAPACITY(kg/h) | 350-2500 | 600-4000 | 900-6000 | |
MOTOR POWER (kw) | MAIN ENGINE | 37 | 55 | 90 |
| OWDER CONCENTRATOR | 11 | 18.5 | 30 | |
| AIR BLOWER | 30 | 45 | 75 | |
| VIBRATING FEEDER | 0.06 | 0.06 | 0.15 | |
| DISCHARGE VALVE | 0.75 | 1.1 | 1.1 | |
OVERALL SIZE(L*W*H)(m) | 10*2*5.5 | 11.9*2.7*5.8 | 14.5*3.8*6.3 | |
The company held a weekday on Saturday
Our passionate management teamwhich is committed to supply more economic, more convenient, better quality production plants for our customers will leadShanghaiPIONEERinto international machinery manufacturing and designing company.
| Packaging Detail:plywood or standards |
| Delivery Detail:3 weeks |
