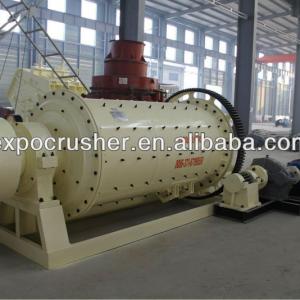

Ball Mill

The ball mill is widely used to grind various medium-hard ores and other materials in mining, building materials, chemical industries, etc. The ball mill can be divided into dry type and wet type according to the milling method; grid type and overflow type or center-discharge and side-discharge type according to the ways of discharge; bearing-mill and bearing pad mill according to the different methods of supporting; rim drive and center drive according to the different ways of transmission. The large mill with diameter above 3 meters is especially configured with jack-up devices for easy maintenance; the dynamical pressure bearing and the static pressure bearing can operate stably. Slow rotation is convenient for overhaul and start; the oil sprayer lubrication device can make big and small gears reliable. The main motor of large mill is high pressure asynchronous motor or synchronous motor, which should be notified in the orders

Working Principle:

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft evenly. There are ladder liner, ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height to impact and grind the materials. And then the grinded materials are discharged through the discharging board.

Model	Speed of barrel (r/min)	Weight of ball (t)	Size of feed opening (mm)	size of outputting (mm)	Capacity (t/h)	Power (kw)	Weight (t)
900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
1200×3000	32	5	≤25	0.075-0.4	1.6-5	45	12.8
1200×4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
1500×3000	27	8	≤25	0.075-0.4	2-5	90	17
1500×4500	27	14	≤25	0.075-0.4	3-6	110	21
1500×5700	27	15	≤25	0.075-0.4	3.5-6	132	24.7
1830×3000	24	11	≤25	0.075-0.4	4-10	180	28
1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
2200×5500	21	30	≤25	0.075-0.4	10-22	370	48.5
2200×6500	21	30	≤25	0.075-0.4	14-26	280	52.8
2200×7500	21	33	≤25	0.075-0.4	16-29	380	56
2200×9500	21	38	≤25	0.074-0.4	18-35	475	62
