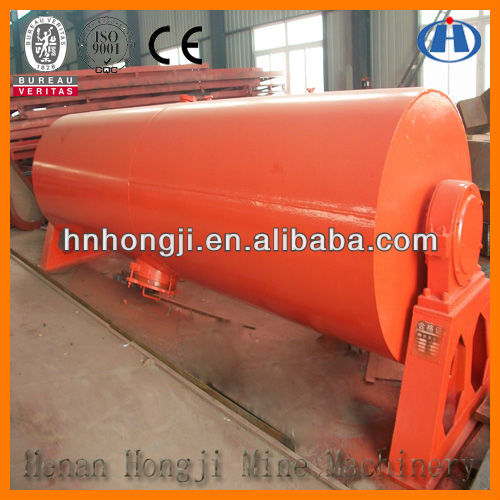

Henan Hongji intermittent(ceramic)ball millfor sale at good price with ISO 9001 CE and large capacity

Brief introduction of (intermittence) ceramic ball mill:

Ceramic ball mill is also called intermittence ball mill or batch ball mill, with drying work and wet working by batch. It is used for fine grinding of feldspar, quartz, clay, ore, etc.

Ceramic ball mill is mainly used for mixing, milling of the materials. It works cost less energy but with high fineness product.It has two types, wet mills and dry mills. The machine could use different lining board according to product requirement to satisfy different customers requirement. The milling fineness depends on the milling time. The motor is started by the coupling which can reduce voltage and lower the starting electricity. The structure is divided into integral type and freestanding type.

Structure of(intermittence) ceramic ball mill:

The Intermittent ball mill consist of cylinder, liner, feeder, feeder row, hollow shaft, bearing, transmission device and lubrication system .

(Intermittence) ceramic ball millWorking Principle:

When the Intermittent ball mill working, the materials are sent to the hollow cylinder for grinding through the hollow shaft.There are all kinds of grinding media with different diameters installed in the cylinder.Rotation of the horizontal cylinder creates centrifugal forces which elevates the balls to a certain height where they fall back, grinding the materials.

Features of(intermittence) ceramic ball mill:

Advantages of the machine are low investment, energy saving, structure novelty, easy and safe to operate, stable and reliable performance, etc. It is suitable for mixing and milling of general and special materials. Users can choose the proper model, lining board and media as per the factors, such as: materials specific gravity and hardness, as well as output, etc.

Main technical parameters of Hongji Brand(intermittence) ceramic ball mill:

Type	Capacity (t/time)	Speed (r/min)	Power /kw	Weight /t
TCQ910×1120	0.2	36	5.5-11	2.6
TCQ1200×1400	0.5	32	11-18.5	4.3
TCQ1500×1800	1	28	15-22	6.5
TCQ1800×2100	1.5	26	18.5-30	8.8
TCQ2100×2100	2.5	22	22-37	13.0
TCQ2200×2400	3	20	28-45	15.0
TCQ2500×2900	5	16	37-55	19.0
TCQ2800×3700	8	14.5	55-75	26.0
TCQ3000×3700	10	14	75-90	32.0

Hongji Brand(intermittence) ceramic ball mill:

Different material of media for different requipments:

Ceramic Grinding Media-Lining:

Equipments working sites:

Consignments of Hongji ball mills:

Production line/Process:

Hongji machine being famous in the whole world:

Certificates and honor of Hongji Brand machine:

Costumers' visitation:

View of our factory:

Pleaes contact us with no hesitation:

Hennan Hongji Mine Machinery Co., Ltd. specializes in manufaturing all kinds of mining machneryequipments with competitive price, ball mill is our main products,they are sold to russia, korea, iran, pakitian market.......We welcome your kind enquiry.

We also supply all kinds of crushing equipments, vibrating feeder, vibrating screen, rod mil, stone washer, belt conveyor, powder concentrator, mineral mixer, screw classifier, flotation machine, concentration, magnetic ore separator, elevator, shaving table, spire chute, blet vacuum filter, rotary kiln, rotary dryer, DMC pulse bag dus catcher,ect. If you have any interest in our products, kindly contact with us by the upper information with no hesitation.
