automatically Shaped cutting machine, Operation reliable,, stable property,, fine applicability,, high efficiency - details see: https://www.machineto.com/hd01-cnc-full-automatic-cutting-machine-for-glass-10330937

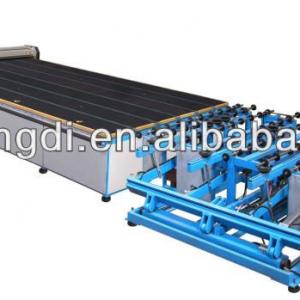

HD01-CNC Full Automatic Glass Cutting Line

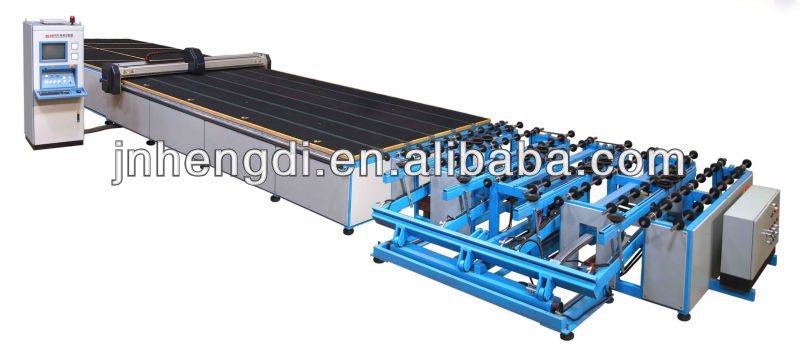

Full automatic glass cutting line is composed of three parts: automatic glass loading machine, automatic glass cutting machine and pneumatic glass breaking machine.

All processing procedures are controlled by CNC, the glass are picked up by the loading machine automatically, then conveyed onto glass cutting table automatically. When the glass-cutting work is finished, the glass is conveyed onto breaking table, the glass is broken into small pieces by pneumatic breaking bars, the breaking bars are controlled by workers. So all production stages are finished smoothly.

The feature is: Operation reliable, stable property, fine applicability, high efficiency.

Model	Arms position		Working station		glass size (mm)	glass thickness	Working time(sec)	Working power (KW)
HD-CNC-3624	One side	Double sides	Single	Double	3660*2440	2~19	<50	7~10

CY-CNC full automatic glass cutting machine

Adopted imported Italy software, operation reliable, stable property, fine applicability, high efficiency.

Technical parameter:

1. Cutting glass thickness:2-19mm
2. Cutting precision:≤±0.25mm/m ( single direction straight line cutting)
3. Diagonal :≤±0.25mm/m (the above mentioned precision data fixed before breaking)
4. Cutting speed: 0~140m/min( adjustable)
5. Tabletop height: 910±20mm
6. Cutting glass size: Depend on original glass size
7. Transmission system: X,Y,Z axis adopted servo motor and YYC racks
8. Cutting operations: Cut glass by air bag device, the cutter can be rotated with 360°,it can cut any shaped glass
9. Oil supply: Automatic dual oil cylinder injection devices,
10. Transportation devices: Asynchronous automatic system, it is convenient for loading and cutting stages
11. Location devices: Optoelectronic scanning system and mechanical location system

    Jinan hengdi is the leading manufacturer specialized in designing and manufacturing different kinds of insulating glass machine, PVC window &door machines, and aluminum window & door machines in China with the experience of more than 10 years. According to the ISO9001:2000 & CE international quality control system guidelines, we help our customers develop special insulating glass machine, PVC window &door machines, and aluminum window & door machines for their application and OEM service offered.

    JINAN HENGDI MACHINE CO., LTD.

    Factory address: NO 6, Luzhuang Industry Park, Tianqiao, District, Jinan Shandong ,China

    TEL& FAX: +86531-86090388

    Sales address: Room1625, NO.88, Jingyi Road, Jinan

    Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.

    Package: Each PC in wooden cases.

    Portof Loading: Qingdao, China

    Delivery Time: During 25 days after we receive your first payment
