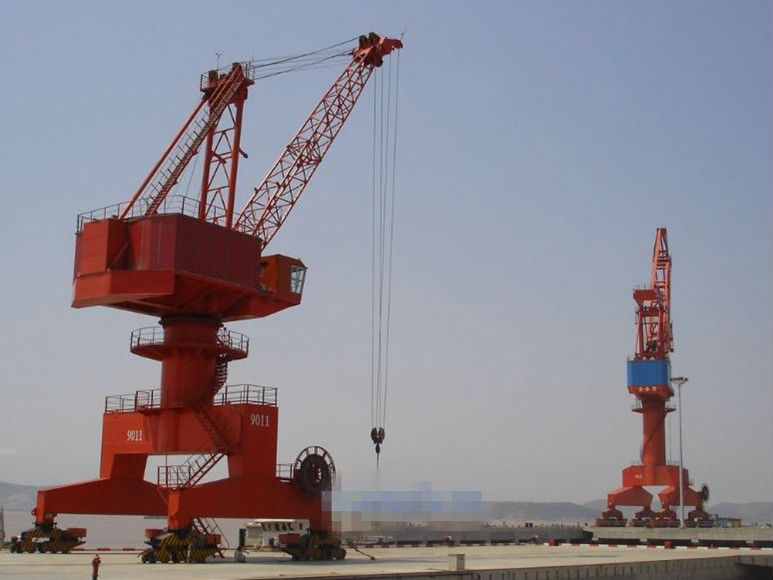

Portal crane

Introduction:

Working in the Open-air, portal crane has been widely used in port, yard, station, stack and so on. In order to quicken the turnover of the vehicle, the operation of loading and unloading, transshipment of goods on the shipping and car needs high efficiency. With the advantage of advanced capability, high working efficiency, compact frame, calm movement, comfortable operation, safety and reliability, convenience maintenance, nice appearance and so on, it can make good use of the limited space of the port, yard and other places, and is available for empty and full loaded work of shipping and requirement of surface car transportation. And especially to general use port, it is a kind of hoisting machine with small investment and swiftness benefit for loading unloading front apron container, sundries and bulk cargo.

Features:

1. Power source is three-phase alternating current, rated frequency is 50HZ, rated voltage is 380V.

2. The temperature in the working environment should be in the scope of -20°C~+45°C and the relative humidity is no higher than 95%(with dew).

3. In-service, the wind speed should be no higher than 20 m/s; and out-of service, the wind speed should be (35-42) m/s.

4. The installation of the crane rail should accord with requirement of Jt5022.

Components:

product specification			3055			4073
group classification of complete machines			A5			A4
elevating capacity	lifting capacity	t	main hook		aux.hook	40	27	22	16	10
			15~17	15~50	19~55	20~45	20~55	20~60	20~67	20~73
	radius	m
lifting height		m	50		50	45
working radius	max.	m	55		50	73
	min.	m	19		15	20
speed of mechanism	lifting speed	m/min	10(20,<12t)		20(40,<2t)	0.2~10
	luffing speed	m/min	~10			0.2~10
	slewing speed	r/min	0.24			0.3
	traveling speed	m/min	30			30
power source			3-phase A.C. 50HZ 380V			3-phase A.C. 50HZ 380V
track gauge/wheel base		m	10.5/12			10.5/14
clear height of portal		m	~10			8.06
tail slewing radius		m	~15			/
rotary disc tail slewing radius		m	12			9.4
in-service maximum wind pressure		N/m	250			250
out-service maximum wind pressure		N/m	1000			1000
in-service maximum wheel pressure		KN	250			400
steel track recommended			P50			P50
installed capacity		kw	220			350

After-sale service

1.We promise to provide brand-new and quality guaranteed products

2.we promise to provide practical solution to settle the problem the user encounters

3.One year warranty for whole machines.

4.Low charge for continue maintenance when warranty is expired.

5.Exclusive support engineer.

6.We can provide the free training to end-users.
