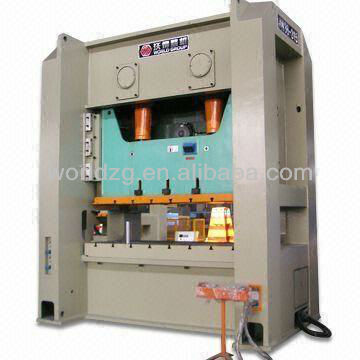

H Frame Double Crank Power Press JW36

1.H Frame Power Press,Doublce Crank, 2.Wet clutch, Overload Protected, Light Protector, 3.Eight surface guideline, 4. PLC, CE - details see: https://www.machineto.com/h-frame-double-crank-power-press-jw36-10132874

Condition:New	CNC or Not:Normal	Power Source:Mechanical	Place of Origin:Jiangsu China (Mainland)
Brand Name:WORLD	Model Number:JW36	Voltage:380V	Power(W):11-55KW
Weight:19-63TON	Dimension(LWH):3400x4500x4690mm	Certification:CE,ISO	Warranty:12months
After-sales Service Provided:Engineers available to service machinery overseas

contact supplier for H Frame Double Crank Power Press JW36

Features:
1.Steel welded body, VSR(Vibratory Stress Relief);
2.Wet clutch, hydraulic overload protector;
3.Double crankshaft,
4.Quadranglar eight surfaces guideway;
5.Auto lubrication, electric die adjustment;
6.PLC control.

ITEM		UNIT	JW36-110	JW36-160	JW36-200	JW36-250	JW36-315	JW36-400	JW36-500
Nominal Capacity		KN	1100	1600	2000	2500	3150	4000	5000
Slide Stroke		mm	180	200	250	280	300	300	350
Slide Strokes		Times/min	35-65	30-55	25-45	25-35	25-35	20-25	15-20
Max.Die Height		mm	400	450	500	550	550	600	650
Die Height Adjustment		mm	90	100	110	120	120	120	120
Slide Hole Size	Forward-Rear	mm	700	780	860	940	1020	1120	1380
Slide Hole Size	Height	mm	350	400	450	460	460	550	600
Distance Between Uprights		mm	1770	1970	2370	2470	2570	2670	3150
Bolster Size	Forward-Rear	mm	680	760	840	920	1000	1100	1200
	Left-Right	mm	1700	1900	2300	2400	2500	2600	3000
	Thickness	mm	155	165	170	180	190	200	210
Slide Bottom Size	Forward-Rear	mm	580	660	740	820	900	1000	1000
Slide Bottom Size	Left-Right	mm	1400	1600	2000	2100	2200	2400	2700
Bolster Surface Height		mm	900	900	1000	1100	1100	1100	1100
Overall Dimensions	Forward-Rear	mm	2050	2380	2630	2920	3100	3250	3400
	Left-Right	mm	2670	2890	3310	3430	3550	3670	4500
	Height	mm	3100	3340	3730	4110	4220	4300	4690
Motor Power		KW	11	18.5	22	30	37	45	55
Weight(approximate)		kg	19000	25000	33000	41000	45000	50000	63000
