A. Usage

Vibrating feeder is widely used in different fields like light industry, chemical industry, food industry and business. It is applied in such producing flows as powder and particles’ feeding, dosing and quantitative automatic packing. And it can realize the centralized control and automatic control in the producing flow

B. Characteristic

Vibrating feeder is a kind of late-model feeding machine. It has the following characteristics compared with other feeding machines.

1. Small cubage, light weight, simple structure, easy to assemble and low transportation expense
2. Its power consumption is small because it applies near sympathetic vibration principle.
3. The series of vibrating feeder supplies power by silicon controlled half wave rectification, and can modify the feeding volume steplessly
4. The feeder is kept being threw up during feeding process, so the abrasion to the trough is small

PERFORMANCE, TECHNICAL PARAMETER, MAIN DIMENSION

GZV series vibrating feeder has totally six models, please refer table 1 to the performance and basic parameter

MODEL		GZV1	GZV2	GZV3	GZV4	GZV5	GZV6
Throughput(T/h)		0.1	0.5	1	2	4	6
Double Amplitude (mm)		1.5
Vibrating Frequency(r/min)		3000
Active power(v)		5	8	20	25	30	50
Weight(kg)		4	7	12	18	27	45
Control Device	Control Model	Controllable half wave rectification
	Supply voltage	220V
	Frequency	50HZ
	Electroma Gnetism(A)	0.10	0.15	0.2	0.3	0.35	0.8
Length 168 width 180 height 80 Length200 width165 height100

Note: Productivity is measured by the material volume 1.6T/M3

WOKRING PRINCIPLE

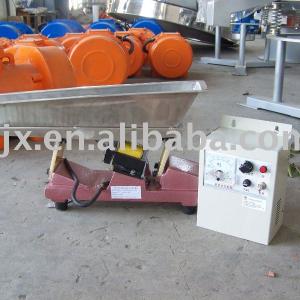

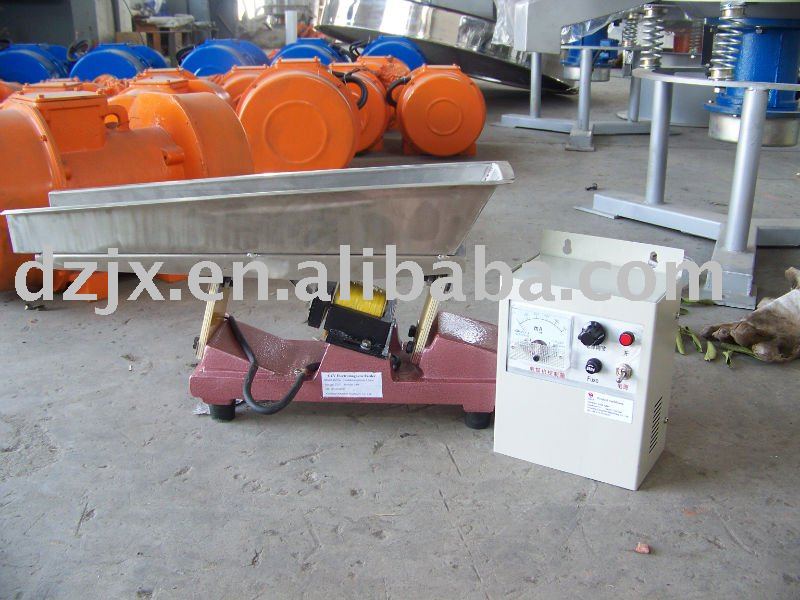

GZV series vibrating screen feeder is made up of feeding trough, elastic system, armature, iron core, coil, pedestal, shock absorbing spring and so on.

The trough and the armature which links to the trough composes the quality (mt), the pedestal and the iron core which links to the pedestal composes quality (m2). MI and m2 are linked together by the plate spring, which makes the system a double particle near sympathetic vibration system.

The single-phase alternating current supplies power for the solenoid coil after being rectified by silicon controlled half wave. The system makes forced vibration under the electromagnetic force.

The feeding trough keeps throwing the materials fronted during the vibration in order to achieve the aim of feeding.

Please kindly contact with us for the details as per your application.

Other vibrating equipment is available, please feel free to contact us.

We'd like to supply you the best solution.
