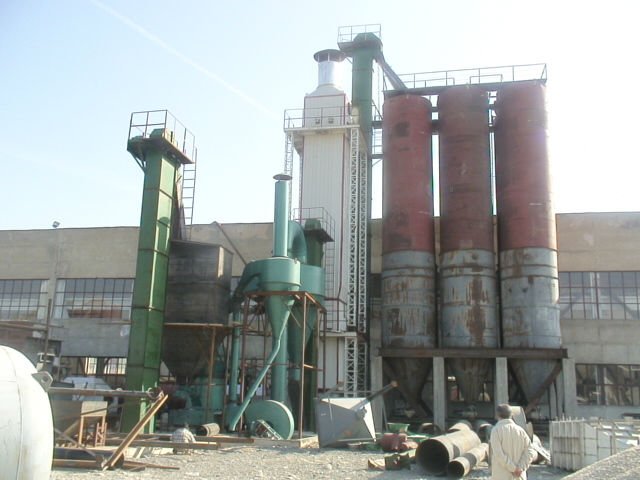

Gypsum Powder Production Line

Gypsum Powder Production Line Advantages:, 1 Larger application range, 2 energy saving, 3 small in investment and high in profit - details see: https://www.machineto.com/gypsum-powder-production-line-10314674

Condition:New	Type:Powder Prodcution Line	Capacity(t/h):refer to specification	Place of Origin:Henan China (Mainland)
Brand Name:Hongxing	Model Number:Micropowder	Certificate:ISO9001:2000	Application:Ore
Feeding size:<=20mm	Discharging size:0.125~0.010

contact supplier for Gypsum Powder Production Line

Good quality products, ideal plaster phase, physical properties

As a result of low temperature heat source, had burned gypsum is not easy, as long as the appropriate

temperature control of the material, finished products do not contain gypsum, anhydrite only less than 5%, the rest are semi-water gypsum. This composition is very good, very stable physical properties.

To achieve the above equipment requirements, through research and development our company has developed a set of boiling furnace equipment, production and processing, the main materials are selected high quality steel. Such as: use good quality seamless steel pipe coil heat conducting oil (GB3087-82); steel used for boiler plate carbon steel and low alloy steel (GB713-86); rack on steel products are used GB. In addition, the welding process in order to ensure the quality of welding operators are certified, welding is completed, in order to prevent heat-conducting oil leakage, the main coil for pressure within the test, pressure test to 0.5-0.6MPa and a half hours or more packing shall be no leakage of qualified products

3the production line equipment list (abbreviated)

5on-site staffing

Broken System 2 persons / day (including forklift drivers)
Grinding System 1 / 8 hours (that is: 3 / day)
Calcining system 1 / 8 hours (that is: 3 / day)
Heating System 2 / 8 hours (ie: 6 / day)
electrician 1 person / day
Machine repair 1 person / day
Total: 16

6yield calculation

Production time: 300 days / year × 24 hours
One machine output: ≥ 11.2 tons / hour (finished product powder)

7product-related parameters(GB9776-88)

1).Fineness: ≥ 100 head.
2).Flexural strength (and raw materials are directly related): ≥ 1.8Mpa; compressive strength: ≥ 3.0Mpa.
3).The main component will:
Hemihydrates content: ≥ 80% adjustable
Gypsum content: <5% adjustable
Soluble anhydrite content: <5% adjustable
4).Initial setting time: 3 ~ 8min adjustable; final setting time: 6 ~ 15min adjustable.
5).Marked thickening: 78 ~ 85% adjustable

8the venue requirements (does not include raw materials yard)

50m×30m

Product Description:

Technical parameters

Sharp tools make good work

Hongxing has bought advanced manfacturing equipments from home & abroad.Numerical control machine tools with high-precision,large processing equipments & special test equipments provide strong safeguard for product quality and company development

Green industry and internationalization is the strategic thought of Hongxing.Hongxing tries best to integrate the advanced technology,excellent talents and advanced concept into the company development,which give support to the pace,strategy and development of Hongxing's internalization and make our business partners using most suitable Hongxing's product .

Excellent quality identified by all the Qualifications

We know what Hongxing gets from the society is more than her contributions to the society Hongxing cannot develop itself in isolation of the society Over the years,Hongxing's staffs have been grateful to the society,what thery can do is to regard product quality as company's life and innovation as object , dedicated to return society,put its strength for the indestrial and national

development.
