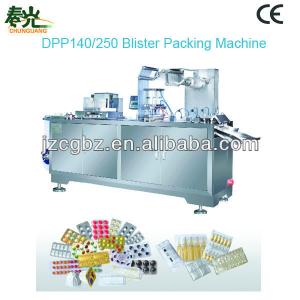

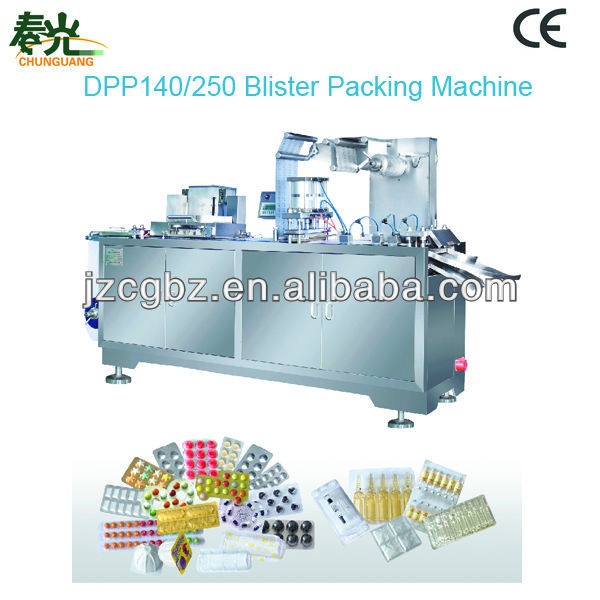

Gum Blister packing machine

1The blister packing machine is Plate type to form and seal which run stable and can form deeper depth.

2 Automatic feeding of the aluminum roll, the upper and lower texture, convex-convex cooperating, multi-stage cylinder heat sealing, automatic pressing and printing batch number and aluminum batch alloy double heating.
3 The distance among parts of forming, heat sealing and stamping serial numbers can be adjusted at will to fit for various medicines packing with high precision and strong usability.
4 the blister packing machine used to adjust the length of manipulator to change the travel at will, operates easily and runs reliably.
5 The blister packing machine adops cycloidal needle wheel to reduce speed and makes the noise low and service life long.
6 It is easy to replac the mould.
7 The cursor alignment finishes the traction length automtically.
8 Print automatically the batch Number.

9 This packing machine has been exported to many countries, such as India, Indonesia, Saudi Arabia, USA, Russia, etc.

Main parameters:

wrapper	PVC sheet	Thickness: 0.2-0.4 mm
		Width: 160-280 mm
	PTP aluminum film	Thickness:0.02-0.04 mm
		Width: 160-280 mm
Cutting frequency	15-40 times/min
Step distance	45-160mm
Max molding depth	30mm
Power	5.55 KW
Power supply	380V 50Hz
Machine dimensions	2800x630x1580mm

1. PVC holder 2.PVC spreading 3.Heating 4.Feeder 5.Common Feeder 6.PTP Holder

7.Waster Recycle 8.Output 9.Cutting 10.Stroke 11.Sealing, Letter Coding 12.Press 13.Forming
