1.stainless steel storage tank, 2.with four universal wheels, 3.SUS316L/304, 4.storage tank capacity:100-1000L, 5.CE&CIQ&ISO - details see: https://www.machineto.com/guangzhou-100-1000l-sealed-storage-tank-with-unversal-wheels-stainless-steel-10283166

stainless steel sealed storage tank with unversal wheels 100-1000L

Applicable range:

1.The stainless steel tank is used to hold oil, paste, caream, paste, water, beverage, drinks, jices, etc.

2.Ideal in fileds such as food, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Feature: sealed mixing stainless steel tank with univeral wheels. manhole thermgratoh, fluid level indicator, high and low level alarm, dustproof air hole, sterlile sampling mouth, meter regulator, CIP cleaning ball valve.

Structure characteristics:

1.The stainless steel storage tank adopts structure of internal tank and external package. cylindrical shape, conical top cover with heat preservation materials inside. easy installation .

2.Materials are all sanitary stainless steel 304 or 316L. Capacity is 100-15000L.

3.Humanized structure design and easy to operate.

Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.

Parameters:

Parameter:	Material	SUS304or316L
	Thickness of S/S	3mm
	Height	1100mm
	Diameter	850mm
	Roller	3pcs(height: 50mm)
	Three legs	materia is 304, height: 100mm
	butterfly Valve	1inch

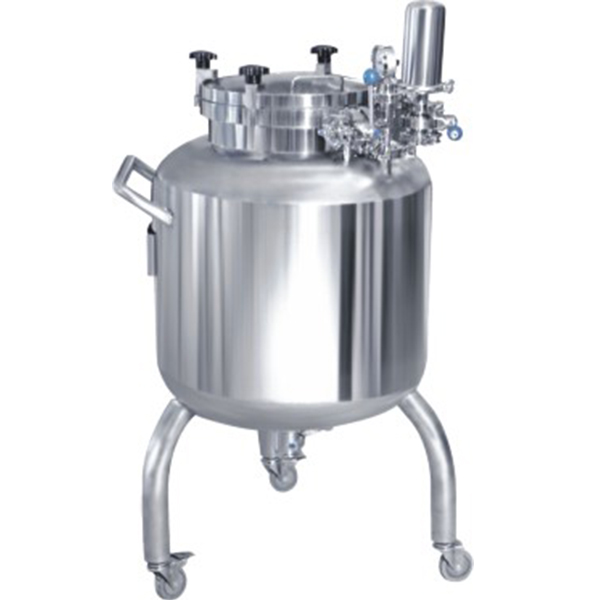

Picture of the sealed stainless steel storage tank with universal wheels
