GRP FRP Fiberglass Filament Vertical Vessel Tank Making Winding Machine Equipment

GRP Vertical Tank Machine, 1.Vertical winding type, 2.To make big vertical tank, 3.CNC control system, 4.Automatic operation - details see: https://www.machineto.com/grp-frp-fiberglass-filament-vertical-vessel-tank-making-winding-machine-equipment-10360149
Place of Origin:Hebei China (Mainland)Brand Name:JHRModel Number:JHR-V-MCondition:New
After-sales Service Provided:Engineers available to service machinery overseasApplication:FRP vessel/tank machineProcessing type:FRP widing machine
GRP FRP Fiberglass Filament Vertical Vessel Tank Making Winding Machine Equipment
contact supplier for GRP FRP Fiberglass Filament Vertical Vessel Tank Making Winding Machine Equipment


GRP Vertical tank machine and FRP vessels winding machine

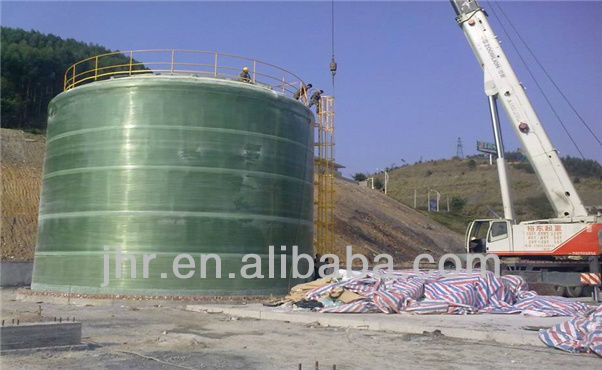

This machine is mainly used to produce and manufacture the FRP vertical winding molded vessels as well as the related winding molded products, such as FRP storage tank, fermentation tank, large FRP tower, large FRP chimney, FRP desulphurization equipment,large corrosion-resistant tank and etc.

This production line is characterized by the high precision of winding line, high productivity, low energy-consumption, easy installation, adjustment and maintenance.

It adopts the industrial computer control, so the usage and operation are very convenient.

For more details,please feel free to contact us!

Vertical Winding Machine of FRP Tank

Equipment Name

Item Name

FWLS-10000FWLS-15000
Pipe diameter,IDmmΦ3000-Φ10000Φ4000-Φ15000
Product height,mm≤8000≤9000
Winding angle,º65906590
Max weight of product,kg3200045000
Rotating speed of main shaft ,r/min≤18≤12
Transmission methodPinion and rackPinion and rack
Control methodmanualsemi automaticautomaticmanualsemi automaticautomatic
Coordinate speed of vehicle,m/min4545
Precision of lining up yarn ,mm±1±1
Repositioning accuracy ,mm0.20.2
Max speed of pulling yarn ,m/min9090
Max width of yarn tape ,mm200200
Winding typeReciprocating cross, hoop directionReciprocating cross, hoop direction
Winding roving capacity,each8080
Resin typeUnsaturated polyester, vinyl ester, etc.Unsaturated polyester, vinyl ester
Yarn framea kind of inner pulling yarnTension adjustable yarn frame of mechanical typeTension adjustable yarn frame of mechanical type
Impregnation groove,stainless steelRoller impregnation or immersion impregnationRoller impregnation or immersion impregnation
Production capacity ,kg/h20002000
Total installed capacity , kw1518
Areas covered by production linelength × width × heightm10×12×1015×18×11
GRP FRP Fiberglass Filament Vertical Vessel Tank Making Winding Machine Equipment
Packaging Detail:disasemble to small parts
Delivery Detail:2 months after firm order
