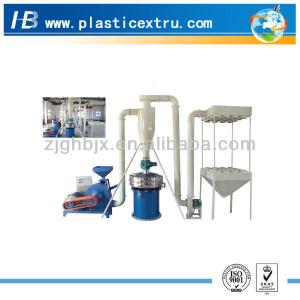

Grinding mill machine

Grinding mill machine, low noise, 100-880kg/h, fashionable design, CE,ISO,UKAS Certification - details see: https://www.machineto.com/grinding-mill-machine-10314028
Condition:NewType:plastic millMotor Type:DC MotorPower(W):50HZ
Place of Origin:Jiangsu China (Mainland)Brand Name:HBModel Number:SMW-500Dimension(L*W*H):3000*2800*3900mm
Weight:1280KGCertification:CE certificationWarranty:12 monthsAfter-sales Service Provided:Engineers available to service machinery overseas
name:Mute vertical turbo-type PVC Pulverizermain motor power:37kw for the PVC pulverizerdraft fan power:5.5KWvibration sieve power:0.75kw
fineness:10-120meshRotary blade:24Application:PVC PulverizerUse:Waste Plastic Crusher
Capacity:120-300kg/hPlastic Type:PVC
Grinding mill machine
contact supplier for Grinding mill machine


Grinding mill machine

Applications


SMW series mute vertical turbo-type PVC pulverizer belngs to the turbo-type pulverizer series, with its blade-disk diameter ranging from 400mmto 800mm. This kind of pulverizer is featured by high speed and is widely used in recycling hard PVC. For example, it can grind PVC Pipe, PVC Profile and PVC Sheet...


Characteristics

+Safe and convenient adjustment of cutting gap

+Regrinding coarse powder automatically

+Low drive power and high thoughput

+Fashionable in design

+Complete facilities

+Dual cooling system

+High quality

+Superb in workmanship

Main Technical Parameter

ModelSMW-500
Main Motor Power37 kw
Draft Fan Power3kw
Air shutter Power0.75 kw
Output120-300 kg/h
Dimensions3000*2800*3900mm
Weight1280 kg

Mechanical Structure and Operational Principle


  1. TheMute Vertical Turbo-type PVC Pulverizeris composed of hopper, cabinet, main shaft, capstan, reclaiming fan blower, dust collecting machine, machine frame, motor, electric control box and so on.
  2. Operating principle: the crashing materials get into the main frame through feeding skip. With the tail-wagging airstreams produced by the tail-wagging of the capstan, the grain-shaped materials tail-wagging in the crocus room, colliding with the board and cutting blades poignantly. After they are crashed, they were sent into dust-collecting bagging through reclaiming fan blower.

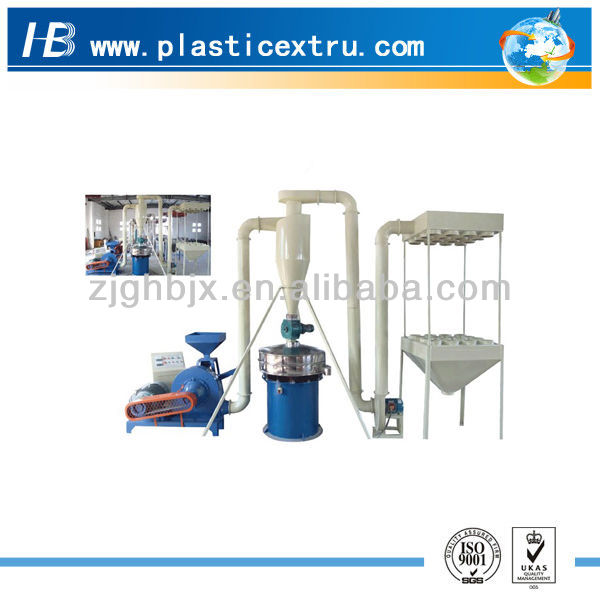

Pictures of Pulverizer for your reference

Packing for the PVC Pulverizer
Loadig time for the Pulverizer Materials we can mill
Welcome to Huibang Machinery Co.,Ltd!
We are at your service at any time. Welcome to Contact us.
Grinding mill machine
Packaging Detail:wooden case package for the PVC pulverizer.
Delivery Detail:20 days for the PVC pulverier
