Introduction

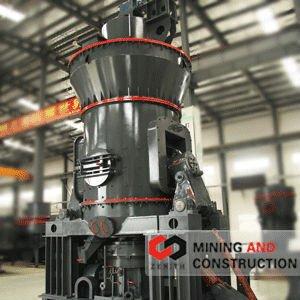

LM vertical grinding mill is a kind of large scale powder making mill which is designed specially to solve the problems of low capacity and high consumption of industry mills. This vertical milling machine is a kind of high capacity and wide application milling equipment with the europe technology and the market demand. It is an ideal equipment that integrates crushing, drying, grinding and grading conveyor all together.

LM vertical mill ( vertical coal mill,vertical ore mill) is widely used in building material, chemical, metallurgy, mine, iron steel and electric power industry, and extensive used to process the material with the Moh’s hardness below 9.5 .

LM series vertical grinding mill (vertical roller mill ) can be widely used in cement making, power,metallurgy, chemical and nonmetalliferous ore industries. It is used to grind lumpy, granular and powdery materials to the required size, such as superfine pyrophyllite powder making in glass fiber industry, gangue powder making in coal industry, chemical raw material powder making in the chemical industry.

Technical Data

Model		LM130K	LM150K	LM170K	LM190K	LM220K	LM240K
Turnplate diameter (mm)		1300	1500	1700	1900	2200	2400
Capacity (t/h)		10~30	13~40	18~57	23~72	36~114	41~128
Final product size	μm	170~45	170~45	170~45	170~45	170~45	170~45
	mesh	80~325	80~325	80~325	80~325	80~325	80~325
Final product water percentage		≤1%	≤1%	≤1%	≤1%	≤1%	≤1%
Max. input size (mm)		<38	<40	<42	<45	<50	<55
Best water percentage of raw material		<4%	<4%	<4%	<4%	<4%	<4%
Drying needed if water percentage is more than		<15%	<15%	<15%	<15%	<15%	<15%
Input wind temperature (°C)		<350	<350	<350	<350	<350	<350
Output wind temperature (°C)		70~95	70~95	70~95	70~95	70~95	70~95
Main motor power (KW)		185~220	250~280	355~400	450~500	710~800	800~900
Overall dimension	L mm	3500	4200	4700	8500	10200	11700
	W mm	3400	3900	4500	5600	6700	7700
	H mm	5800	7100	8300	8800	10600	12200
Weight (t)		48	75	90	100	125	160
