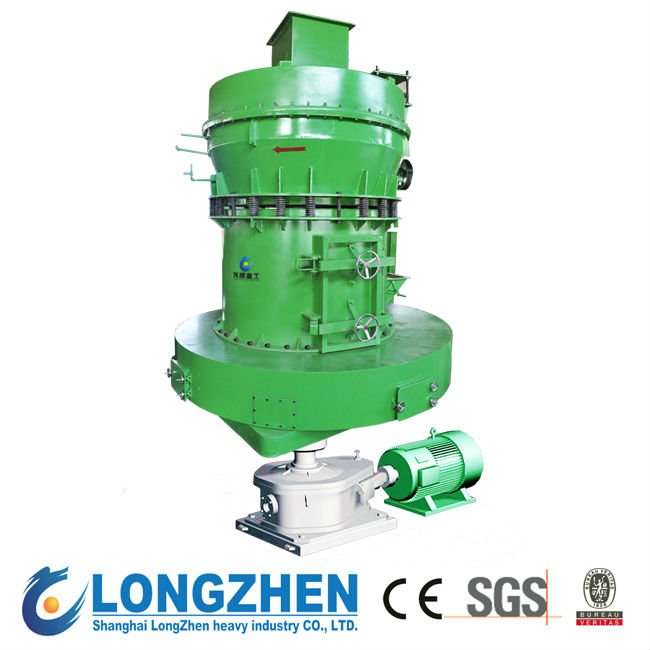

Grinder Mill Machine For Stone Powder

grinder mill machine, 1.Easy to setup,operate, 2.Long service time, 3.Best aftersale service, 4.High reliability - details see: https://www.machineto.com/grinder-mill-machine-for-stone-powder-10314250

Condition:New	Type:Raymond Mill,Vertical	Motor Type:AC Motor	Power(W):15-75kw
Capacity(t/h):0.5-10	Place of Origin:Shanghai China (Mainland)	Brand Name:Longzhen	Model Number:fine grinding
Dimension(LWH):430035005100	Weight:3.8-25.7t	Certification:CE/SGS/BV/ISO	Warranty:main frames 3 years,bearings 1 year
After-sales Service Provided:Engineers available to service machinery overseas	Model:grinder mill machine	Color:Negotiable	Certificate:ISO
CNC or Not:CNC	Price:Negotiable	Application:Sand

contact supplier for Grinder Mill Machine For Stone Powder

Grinding Mill Machine Brief

Grinder Mill Machine Introduction

Grinder mill machine is a world leading level industrial mill by introducing world-class industrial milling technology on the base of many years of industrial mill research and development with a large number of technical experts and related engineering staff carefully designing, testing and improving.Grinder machine adopts trapezoidal face,flexible connection,roller mill supercharger and many other national patent technologies which completely overcomes defects on scope of application,production,fineness,consumption of energy,using life length of traditional mill.It is a substitute for the traditional mill.

Grinder Mill Machine Working Principle

Working progress of mainframe of grinder machine is driving central axis to rotate by varvel, there is a cinquefoil shelf connected on the top of the axis, and the roller device is equipped on the shelf and forms a swing pivot.The roller device doesn’t only rotate around the centering axis but also revolves around the ring, and the roller rotates itself because of rubbing action.There are shovel blades equipped on the bottom of the cinquefoil shelf. When shovel blades rotate with rollers, they throw up the materials and send them into the space between rollers and ring and then form a material bed, produced by the rotating of rollers. The material is crushed by the centrifugal force.

Grinder Mill Machine Technical Specifications

grinder mill machine	Number of roller(piece)	Major Diameter of roller×Height(mm)	Main engine Spindle speed(r/min)	Maximum feeding Grain size	Grain size of Finished Product(mm)	Output (T/h)	Motor of main equipment power(Kw)	Motor of adjustable varying speed motor power(kw)	Motor of blower power(Kw)
TXM100	4	320*200	130	<25	1.6~0.045	3~8.8	45	5.5	37
TXM130	5	400*240	98	<30	1.6~0.045	6~13	90	7.5	75
TXM160	6	440*270	82	<35	1.6~0.045	13~22	132	11	110
