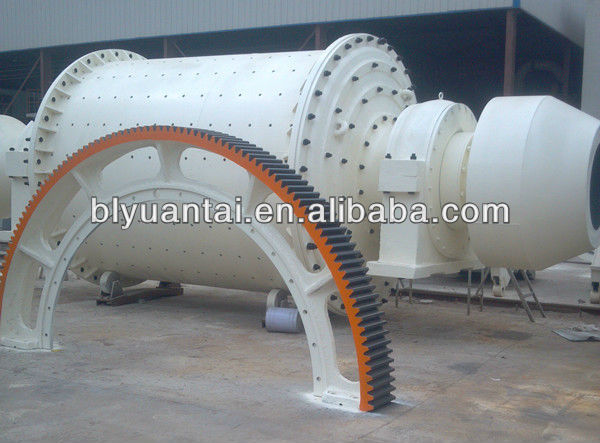

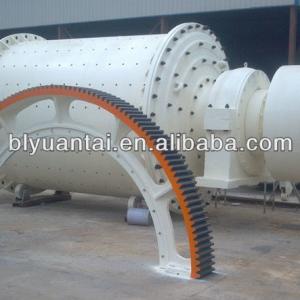

Good quality mining machine grinding ball mill

Grinding Ball Mill:, 1.High efficiency, 2.Reliable performance, 3.Competitive price, 4.ISO9001,CCC - details see: https://www.machineto.com/good-quality-mining-machine-grinding-ball-mill-10314063

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):18.5-800 kw
Capacity(t/h):1-90 t/h	Place of Origin:Henan China (Mainland)	Brand Name:Bailing	Model Number:BL
Dimension(LWH):all	Weight:3.6-137 tons	Certification:ISO9001,CCC	Warranty:1 YEAR
After-sales Service Provided:Engineers available to service machinery overseas	Product name:grinding ball mill	Color:as Required	Motor:Chinese famous brand or as your required
Application:ore	Power consumption:energy-savig type	Grinding way:Both wet and dry Grinding	Feeding granularity(mm):≤25
Delivery time:As Required	Min discharg size:0.074mm	Package:Main machine in nude, spareparts and motors in wooden cases

Advantages of our grinding ball mill:

1.High Quality outer gear

2.Reliable rotating device

3.Durable liners and steel balls

l Application:

Used for both wet and dry grinding various materials,such as cement, silicates, cor hart,nonferrous and

black metal, glass and ceramic, etc.

l Working principle:

1.The materials are transferred to the grinding chamber through the quill shaft uniformly.

2.The centrifugal force caused by rotation of barrel brings the steel balls rock up and down to grind the

materials.

3.The final products will be discharged through the filter , while the defects will stay inside till the size were

reached.

l Main Technical Parameter:

Model	bucket Speed (r/min)	ball weight (t)	Max. Feed size (mm)	output size (mm)	Capacity(t/h)	Power (kw)	Weight (t)
φ900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
φ900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
φ1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
φ1200×3000	32	5	≤25	0.074-0.4	1.6-5	45	12.8
φ1200×4500	32	7	≤25	0.074-0.4	1.6-5.8	55	13.8
φ1500×3000	27	8	≤25	0.074-0.4	2-5	90	17
φ1500×4500	27	14	≤25	0.074-0.4	3-6	110	21
φ1500×5700	27	15	≤25	0.074-0.4	3.5-6	132	2407
φ1830×3000	24	11	≤25	0.074-0.4	4-10	180	28
φ1830×6400	24	23	≤25	0.074-0.4	6.5-15	210	34
φ1830×7000	24	25	≤25	0.074-0.4	7.5-17	245	36
φ2200×5500	21	30	≤25	0.074-0.4	10-22	370	48.5
φ2200×6500	21	30	≤25	0.074-0.4	14-26	380	52.8
φ2200×7500	21	33	≤25	0.074-0.4	16-29	475	56
φ2400×3000	20.6	15.5-15.6	≤25	0.074-0.4	15-55
φ2400×4500	21	30	≤25	0.074-0.4	15-60
φ2700×4000	20.6	40	≤25	0.074-0.4	20-80
φ2700×4500	20.7	48	≤25	0.074-0.4	20-90
φ3200×4500	18	65	≤25	0.074-0.4	According to different tech
