Good price for wet grinding ball mill

Good price for wet grinding ball mill, Energy saving,, low consumption., Easy manitenence., ISO,CQC,BV. - details see: https://www.machineto.com/good-price-for-wet-grinding-ball-mill-10314455

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):280kw
Capacity(t/h):42-8.5	Place of Origin:Henan China (Mainland)	Brand Name:zhongke-Good price for wet grinding ball mill	Model Number:GMQG2436
Dimension(LWH):280029503600	Weight:61t,60800 kg	Certification:ISO,CQC,BV	Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas	Product Name:Good price for wet grinding ball mill	Model:GMQG2436	Shell Size (Dia.length):24003600 mm
Effective Volume:14.6 CBM	Grinding Media Weight:30 t	Rotate Speed:22.8 r/min	Power:280 kw
Discharge Scope:0.8-0.074 mm	Capacity:42-8.5 t/h

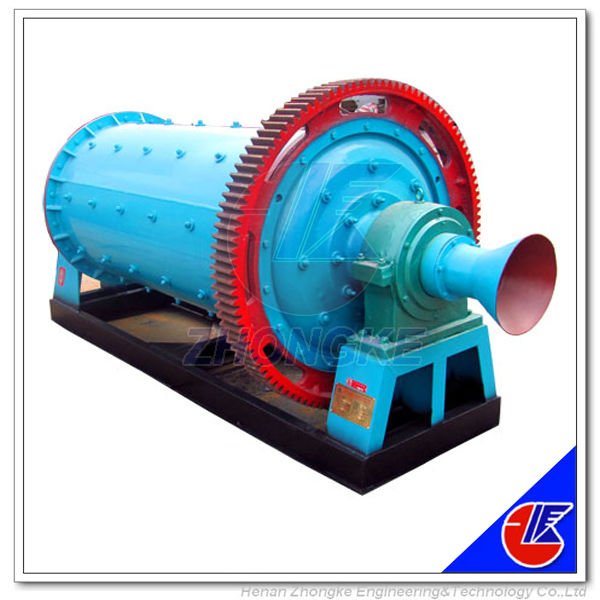

Model: GMQG2436

Energy saving ball mill is applicable for grinding all kinds of mines and other materials, widely used in mineral separation, building material and chemical industries, including dry-type ore grinding and wet-type ore grinding. According to different discharging methods, it is divided into grate ball mill and overflow ball mill.

Ball mill application:

It is a kind of key equipment for milling the materials into powders after they are crushed. It is widely used for cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and soon, and can make the dry and wet milling on all kinds of ores and other grindability materials .

Wet grinding ball mill working principle:

1. It is horizontal type and cylinder rotating device, has two cabins, grate energy saving ball mil, and its outside drives along gear.

2. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device, In this warehouse, there is a ladder scale board or ripple scale board, and different specification steel balls are installed on the scale board, when the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to make the material grinding and striking.

3. After grinding, coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scale board In the end, the powder is discharged by output material board and the end products are completed.

Wet grinding ball mill features:

The ball mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on.The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The cylinder is wearable well and bears wearable lining board. This machine runs steadily and works reliably.

Wet Grinding Ball Mill Main Technical Parameters:

About Us:

Henan Zhongke Engineering & Technology Co., Ltd.is specialized in heavy equipment like various crushers, magnetic separators, mining machines, bricks and blocks machines, cement production line, AAC block line, etc., which is located in the middle of China. Our competitive price, high quality products and excellent after-sales service had gain us good reputation in this field.
