Home  >  Mining & Metallurgy Machinery  >  Mining Machinery  >  Mine Mill

gold ball mill prices:, 1). CE, CCC, CQC,ISO9001,Patent NO., 2). 12 month warranty, 3). Engineer instal - details see: https://www.machineto.com/gold-ball-mill-prices-86-15978436639-10313895

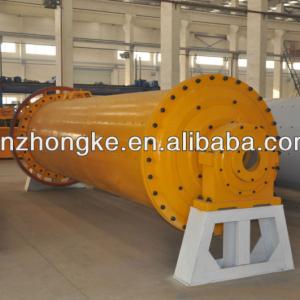

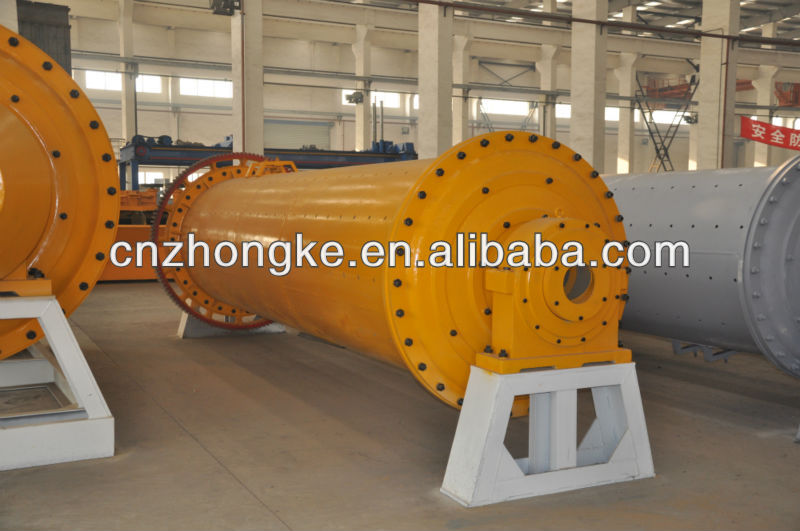

Gold Ball Mill PricesApplication:
Ball mill is a kind of key equipment for milling the materials into powders after they are crushed. Ball mill is widely used for cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and soon, and can make the dry and wet milling on all kinds of ores and other grindability materials.

Gold Ball Mill Prices Working Principle:

Ball mill is horizontal type and cylinder rotating device, has two cabins, grate energy saving ball mil, and its outside drives along gear. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device, In this warehouse, there is a ladder scale board or ripple scale board, and different specification steel balls are installed on the scale board, when the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to make the material grinding and striking. After grinding, coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scale board In the end, The powder is discharged by output material board and the end products are completed.

Gold Ball Mill Prices Features:

Ball mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on.The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The cylinder is wearable well and bears wearable lining board. This machine runs steadily and works reliably.

Gold Ball Mill Prices Technical Parameter:

Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity	Motor power(kw)	Weight(t)
					(t/h)
Ø900*1800	36-38	1.5	<=20	0.075-0.89	0.65-2	18.5	4.6
Ø900*3000	36	2.7	<=20	0.075-0.89	1.1-3.5	22	5.6
Ø1200*2400	36	3	<=25	0.075-0.6	1.5-4.8	30	12
Ø1200*3000	36	3.5	<=25	0.074-0.4	1.6-5	37	12.8
Ø1200*4500	32.4	5	<=25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	<=25	0.074-0.4	2-5	75	15.6
Ø1500*4500	27	11	<=25	0.074-0.4	3-6	110	21
Ø1500*5700	28	12	<=25	0.074-0.4	3.5-6	130	24.7
Ø1830*3000	25.4	11	<=25	0.074-0.4	4-10	130	28
Ø1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	32
Ø1830*6400	24.1	21	<=25	0.074-0.4	6.5-15	210	34
Ø1830*7000	24.1	23	<=25	0.074-0.4	7.5-17	245	36
Ø2100*3000	23.7	15	<=25	0.074-0.4	6.5-36	155	34
Ø2100*4500	23.7	24	<=25	0.074-0.4	8-43	245	42
Ø2100*7000	23.7	26	<=25	0.074-0.4	8-48	280	50
Ø2200*4500	21.5	27	<=25	0.074-0.4	9-45	280	48.5
Ø2200*6500	21.7	35	<=25	0.074-0.4	14-26	380	52.8
Ø2200*7000	21.7	35	<=25	0.074-0.4	15-28	380	54
Ø2200*7500	21.7	35	<=25	0.074-0.4	15-30	380	56
Ø2400*3000	21	23	<=25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	<=25	0.074-0.4	8.5-60	320	65
Ø2700*4000	20.7	40	<=25	0.074-0.4	12-80	400	94
Ø2700*4500	20.7	48	<=25	0.074-0.4	12-90	430	102
Ø3200*4500	18	65	<=25	0.074-0.4	-----	800	137
