GMZ-2600 Down-Stroke Needle Punching Machine
| Place of Origin:Shandong China (Mainland) | Brand Name:RD | Model Number:GMZ-2600 | Certificate:CE certificate |
1.Description of GMZ-2600 Needle Punching Machine :
Needle Punching Machine can be fleeciness fiber, cotton to comb cotton, spread nets, acupuncture, strengthening become needle-punched cotton, insulating felt, raw materials of greenhouse, shoes, mattresses, sofa cushion, car seat rug, chemical product and different specification product.
Advantages: width can be adjusted, speed adjustable, thickness can be adjusted, strong degree adjustable, etc.
2. Main Technical of GMZ-2600 Needle Punching Machine:
A. Working Width : 2.3-2.5m
B. Thickness of products : 5-15mm
C. Output Capacity: 7-8m/min 500-1500g/m2
D. Needling Frequency : 100-650 times/min
E. Needling Travel : 35-65mm
F. Needle Number : 5000 pcs(first) / 6000 pcs (second)
G. Power : 7.5kw + 7.5kw +7.5kw
H.Cylinder of carding machine : 430mm
I . Speed of carding machine cylinder: 1100 r/min
J. Size of one machine : 3000mm*700mm*2000mm
K. Covering area for GMZ-2600 needle-punching machine: 10m*4m*3.5m
L. Weight : about 4800 kg
Main Technical Data of opening Machine | |
| Output | 130-200 kg /hr |
| Diameter of cylinder | 400mm |
| Speed | 1400r/min |
| Main motor | 7.5kw |
| Reducer | 1.1 kw |
| weight | 500 kg |
| Size | 2040*1500*1030mm |
Main Technical Data of Carding Machine | |
| Diameter of cylinder | 450mm |
| Speed | 1100 r/min |
| Main motor | 7.5kw |
| Reducer | 1.1kw |
| Size of one machine | 2900mm*1100mm*1250mm |
| Weight | about 1400 kg |
Main Technical Data of Chute feed | |
| Fan | 4 kw |
| Size | 1850*320*2600mm |
| Weight | about 100 kg |
Main Technical Data of needle loom | |
| Width of products | 2.3-2.5m |
| Thickness of products | 5-15mm |
| Output | 7-8m/min 500-1500GSM |
| Needling Frequency | 100-650 times/min |
| Needling Travel | 35-65mm |
| Number of Needle | 5000 pcs(first) / 6000 pcs(second) |
| Main motor | 7.5kw |
| Reducer | 1.5kw |
| Size of one machine | 3000mm*700mm*2300mm |
| Weight | about 1800 kg |

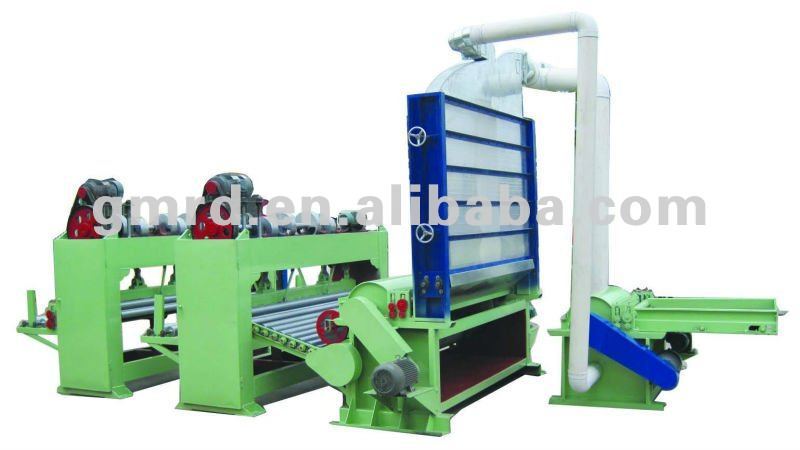

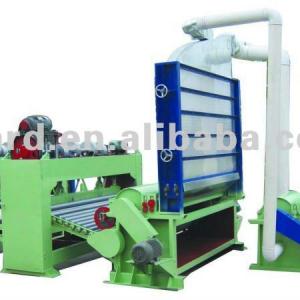

3. Picture of GMZ-2600 Needle-punched machine for non woven making:
| Packaging Detail:Export Standards Packing |
| Delivery Detail:within 10 days |
