GM510 five rollers textile waste recycling machine

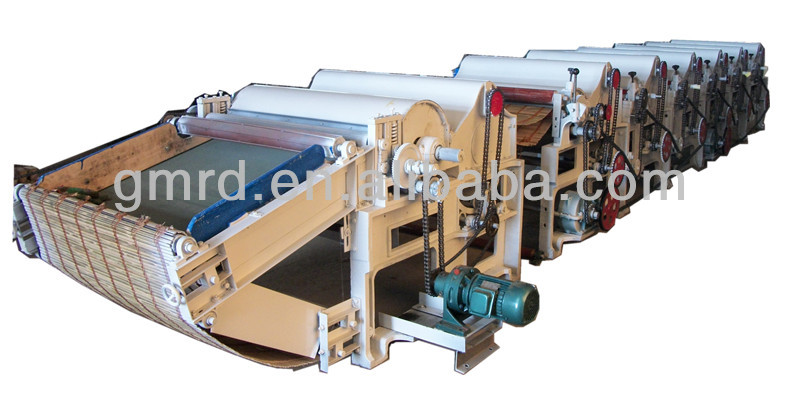

GM510 Five rollers textile waste recycling machine

This machine makes use of the centrifugal force generated by high speed rotation of take-in roller clean out impurities from raw material, loosen fibers, and then press the fiber into big flakes. This machine can also remove the dust in the raw material. It is mainly used to clean cotton, spinning cotton waste to reuse again. It is the best way to reduce cost and make good use of resources.

Technical specification

1. Output 100~ 120kg /h

2. Diameter of take-in roller 250 mm

3. Rotating speed of take-in roller first 1900round min; Second 2000r/min

4. Dust basket diameter 500mm mesh 2mm

5. Motor Y132S-4 5.5KW three sets

6. Take-in wire 1.09x75º×7 teeth/25.4mm

7. Outside dimension (LXWXH, mm) 3950mm X 1720mm X 1160mm

8. Weight 2800kg

All the photographs are for reference only, and the actual products may vary from the photographs.
