two cylinder, Output: 150kg/h, Barbed rollers diameter: 400mm, Easy operation, High output Low cost - details see: https://www.machineto.com/gm400-two-cylinder-cotton-waste-recycling-machine-10279721

Application:

It is used for recycling and cleaning the thrum fiber crops, cloth leftover, chemical fiber and other kinds of fibers.

Characteristics:

1. New rack structure is scientific, reasonable and safe, the performance is reliable; operation is stable, and easy to handle.
2. Output is high, good loosing and cleaning effects, low-loss, environmental and low noisy.
3. Adopt to oblique gear speed reducer make the good adaptability during the long time working, and will not be heat, has long life time.
4. Equipped with the new designed rack, loosing and recycling combined working models, gradually processing materials, reduce the damage to fiber, improve the length of fiber.
5. Special structure roller and arc-shaped cotton feeding board, and has long life time
6. Gap is easy to adjust and maintenance
7. Have thickened roller, four roller cotton feeding device, gear roller and other feeding type, is free to choose according to different materials.

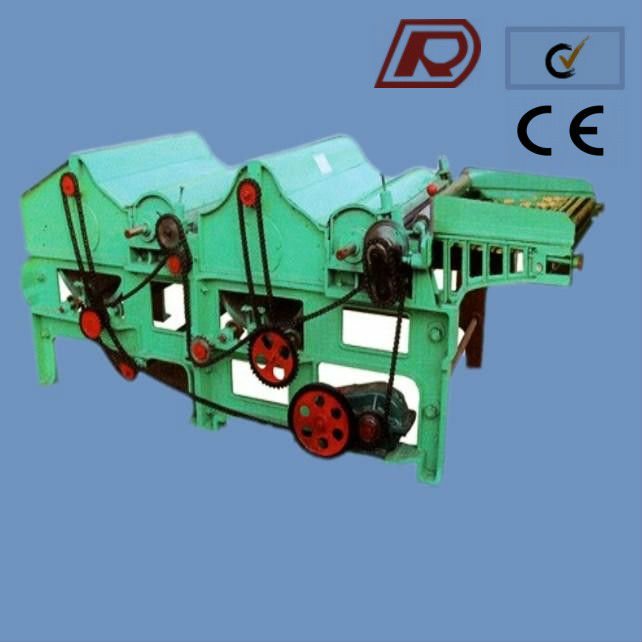

Specifications of GM400 two cylinder cotton waste recycling machine

It is used for recycling and cleaning the thrum fiber crops, cloth leftover, chemical fiber and other kinds of fibers

Simple description of GM400 two cylinder yarn/cotton /textile waste recycling machine:

1. Output: 150kg/h

2. Barbed rollers diameter: 400mm

3. Revovling speed of rollers: first: 2000 the others: 2100

4.Motor: first set : 15 KW other five set: 11 kw

5. Fan: six set: 1.5 kw

Mian Products of GM400 two cylinder cotton waste recycling machine:

1. One set cutting machine: GM350

2.One set opening machine: GM600

3.One set cleaning machine: GM400-2 two cylinder

4.One set balers.

Mian technical of GM400 two-cylinder textile/cotton/yarn waste recycling machine:

Specification	GM250*1000	GM250*1500	GM350*1250	GM400*1000	GM400*1250	GM400*1500
Roller Dia	250mm	250mm	350mm	450mm	400mm	400mm
Output	40-50kg/hr	70-90kg/hr	100-130kg/hr	90-140kg/hr	120-160kg/hr	150-200kg/hr
Motor	9.5kw	9.5kw	11kw	11kw	13kw	15kw
Dimension(mm)	3300*1700*1150	3300*2300*1150	3550*1950*1200	3650*1700*1200	3650*1950*1200	3650*2300*1200
