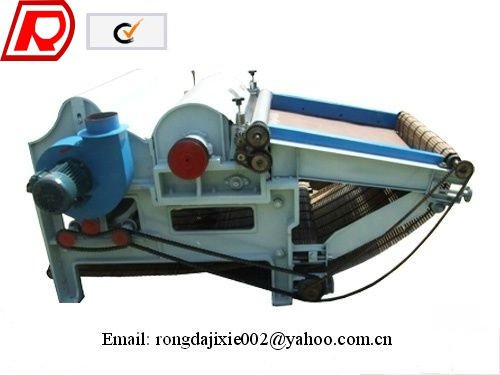

GM400 new design cotton/textile waste tearing machine

1.Application:

recycling,cleaning cotton,fiber crops,cloth leftover,chemical fiber and other kinds of fibers.

2.characteristics:

1)New rack structure is scientific, reasonable and safe, and the performance is reliable; stable operation makes the machine easy to handle.

2)With good loosening and cleaning effects, and the machine enjoys high output, low loss, and low noise.

3)Adopting oblique gear speed reducer makes the good adaptability during the long time working, so the machine will not heat easily and has a longer lifespan.

4)Equipped with the new designed rack, with the loosing and recycling combined working pattern, the machine reduces the damage to fiber, and protects the length of fiber.

5)Special structure roller and arc-shaped cotton feeding board also help to longer lifespan of the machine.

6)Gaps in the feeding part are easy to adjust, which makes the device in the feeding part is easier to maintain.

7)With various feeding types such as thicker roller, 4 roller and gear roller, you could choose freely according to different materials.

3.Main technical parameters

Roller diameter	400mm
Dimension	2250*1500*1150mm
Weight	700kg
Motor power	15~22KW
Fan power	1.5kw
dust cage diameter	500mm
Output	130-212kg/h
Rotating speed	1600r/m

Model	GM600 iron	GM600 wood
Output	130-210kg/h	130-210kg/h
Roller	dia600*1000mm	dia600*1000mm
Dust cage	dia500*1000mm	dia500*1000mm
Rolle rotating speed	1200r/m	1100r/m
Motor power	22kw	18-22kw
Fan	1.5kw	1.5kw
Weight	1003kg	790k
Dimension	2550*1500*1300mm	2800*1600*1350mm
