1.GM250-6 high efficiency cotton waste cleaning machine, 2.automatic back cotton machine, 3.High production speed - details see: https://www.machineto.com/gm250-6-fabric-waste-cleaning-machine-10279460

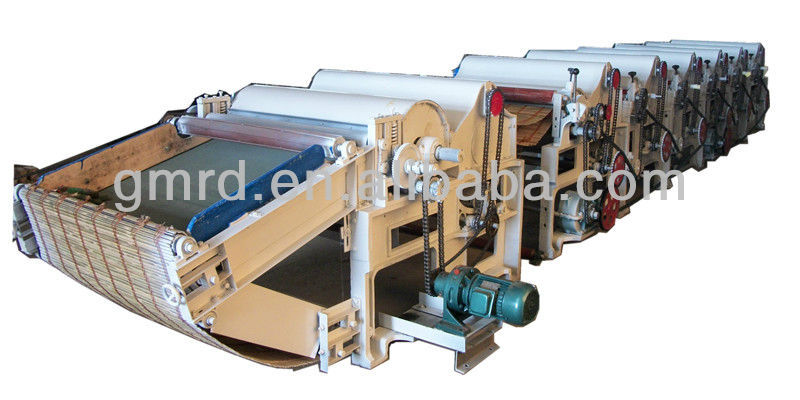

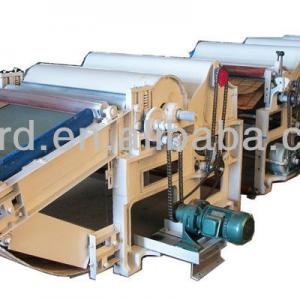

GM250-6 high efficiency cleaning cotton waste machine

Features and uses:

The machine is designed and manufactured by an integrated feature and advanced experience of domestic and foreign cotton processing machinery. Through identify,the machine has reached the requirements of high-quality, high output, low-consumption,which has the compact model, easy operation, good dust, safe and reliable.

With the High-speed centrifugal force generating by the licker-in,the machine excludes the mechanical impurities in cotton and looses the lint,rolling into the film,easy to use.

The machine can dust and care health, adapted to process at all levels of lint cotton, old quilt, breaking seed cotton, waste yarn, cloth corner, linen and other items.

specifications:

1.Output:160-180kg/h

2.Licker-in diameter: Φ250mm

3.Licker-in speed:The first licker-in:1900rev/min; II,III,4:2100 r/min;

4.Diameter and speed of into roller: 1600*2100mm

5.Dust cage:diameterΦ500mm,

meshΦ18X4X3 (144-156holes/ decimetre)

6.Pressure cotton roll:1040MM

7.Draught fan: Speed 2800r/min

8.Motor: 1)22KW* 1 SET,

2) 7.5KW * 1 SET,

3) 5.5KW*5 SET,

9.Article spurs model:1.09X75teeth / 5.64mm

10.Host Size (l*X w *h):5600X1720mmX1160mm

11.Machine Weight≈ 5000KG
