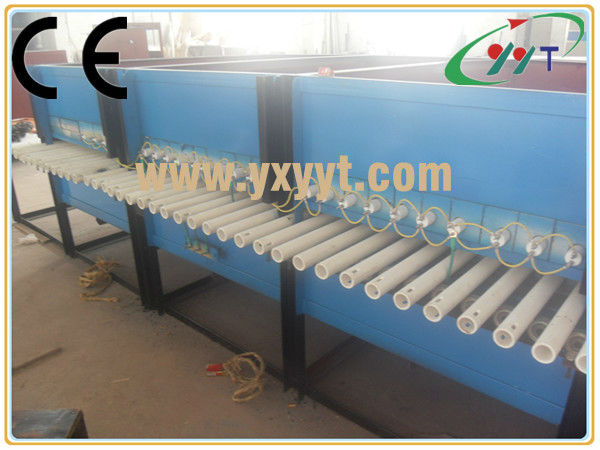

Glass mosaic tile furnace

1)Mosaic tile furnace length:28-36m, 2)Maximal temperature: 900, 3)Monthly production:5,000 to 15,000 square meters - details see: https://www.machineto.com/glass-mosaic-tile-furnace-10085237

Condition:New	Place of Origin:Jiangsu China (Mainland)	Brand Name:YYT	Model Number:YYT-SJTT
After-sales Service Provided:Engineers available to service machinery overseas	Maximal use temperature:900

contact supplier for Glass mosaic tile furnace

1. Furnace effective size: L28000×B850×H100(mm);

Furnace configuration size: L28000×B2000×H1150(mm);

2. Maximal use temperature: 900°C;

3. temperature control point:5 pics;

4. Temperature-control accuracy: ±1°C;

5. Electrothermal element: electrothermal alloy wire;

6. Electrical heating power:180KW/380V(three-phase);

7. Average insulation power: 120Kw;

8. Temperature control method: PID PC intelligent digital display temperature control, SCR silicon module control imported from Germany, temperature control device configuration manual, linear proportional output, manual and automatic regulation, adjustable power, automatic constant temperature, fault alarm;

9. Transmission mode: bevel gear ceramic roller;

10. Roller specification: φ45mm high-aluminum ceramic roller;

11. Feeding style: continuous feeding;

12. Roller speed control: 2 groups of frequency control, roller speed adjustable;

13. Total weight: about 20 tons.
