glass grinding machine

Glass straight line edging machine, Glass straight grinding machine, Glass straight line cutting machine, Glass Straight Edging - details see: https://www.machineto.com/glass-grinding-machine-10330889

Condition:New	Machine Type:Glass Edging Machine	Place of Origin:Zhejiang China (Mainland)	Model Number:9 spindles
Voltage:380v/220v	Power(W):18kw	Dimension(LWH):705011003300 mm	Weight:3000kg
Certification:CE	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas	Product description::Glass Straight Line Edging Machine ( 9 Spindles)
Feeding rate::0.5--4m/min	Max. straight edge grinding ::3mm	Max. arris edge grinding ::2.5mm	Edge Angle::45°
Glass max. size::3000mm*3000mm	Glass min size::100*100mm	Glass thickness::3~25mm	Height of platform:750mm

contact supplier for glass grinding machine

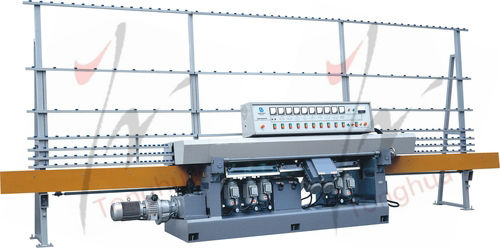

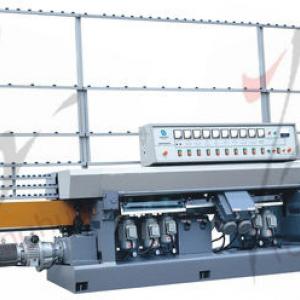

Glass Straight Line Edging Machine ( 9 Spindles) is suitable for grinding different size and thickness flat glass straight edge and45°angle. This machine can do the process of burr edging , accurate grinding , polishing , chamfering at one time. it is also adopted infinitely variable speeds adjustment, big adjustable range , smooth and steady speed change, it can freely adjust the feeding speed and rate when grinding. it can also adjust the former rail to change the the processing glass thickness. it can automatic clamping and stabilivolt system, also with the advantages: advanced structure , high standard accuracy, easy operation and high working efficiency. it can be equiped into manual and automatic mold design , grinding head with various combination for customers to choose.

Specification
Product description:	Glass Straight Line Edging Machine ( 9 Spindles)
Feeding rate:	0.5--4m/min
Max. straight edge grinding :	3mm
Max. arris edge grinding :	2.5mm
Edge Angle:	45°
Glass max. size:	3000mm*3000mm
Glass min size:	100*100mm
Glass thickness:	3~25mm
Power:	18 KW
Height of platform	750mm
Size:	705011003300 mm
Total Weight:	3000 kgs
Voltage:	220V /380v
