glass drilling machine

Glass drilling machine, drills upper and bottom holes automatically with high efficiency on glass or mirror. - details see: https://www.machineto.com/glass-drilling-machine-10084253
Condition:NewMachine Type:Glass Drilling MachinePlace of Origin:GUA,Guangdong, China China (Mainland)Brand Name:BEIJIANG
Model Number:BZ0213ALVoltage:380/220/415V; 50/60HzPower(W):2.2KWDimension(L*W*H):2600*1680*1650mm
Weight:800KGCertification:OtherWarranty:6 monthscolor:blue
glass drilling machine
contact supplier for glass drilling machine

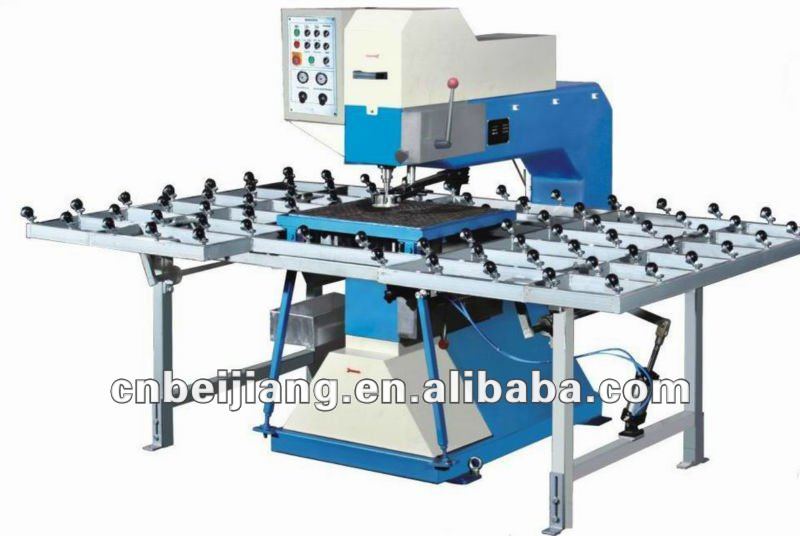

Glass Drilling Machine BZ0213AL is suitable for drilling holes on different size and thickness glass. A Pneumatic working table is useful for supporting big size glass.

2. Specification

(1). Power source: 3-Phase, 380V/220V/415V, 50Hz/60Hz as required

Note: If the supply voltage isnt adaptable, please provide a voltage stabilizer by yourself.

(2). Total power: 1.7kw/2.2kw

(3). Drilling hole dimension: φ4mm-φ130mm

(4). Glass thickness: 2mm-20mm

(5). Overall dimensions: 2600*1680*1650(mm)

(6). Total weight: 900kg

(7). Maximum distance from drilling center to the edge of glass: 1050mm

(8). Height of working table: 900mm

(9).Drilling spindle speed: 420rpm-3010rpm

(10).Drilling spindle speed adjustment: By changing main motor at High or Low speed grade and the V-Belt position

(11). Drilling aiguille specification: Taper: 60°; Screw: G1/2

(12). Motor Specification: 0.85kw/1.1kw, 4 Pole/6 Pole

Itemspecification
Voltage/Frequency380V/220V/415V, 50Hz/60Hz
Drilling hole diameter4~130(mm)
Thickness3-20(mm)
Space between drilled hole and vertical post1050mm
Total Power2.2kw
Weight800kg
Height of worktable900mm
Dimension2600×1680×1650(mm)

glass drilling machine
Packaging Detail:wooden case
Delivery Detail:20 days after receipt the 30% deposit
