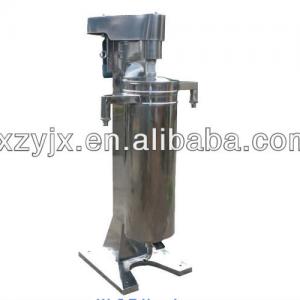

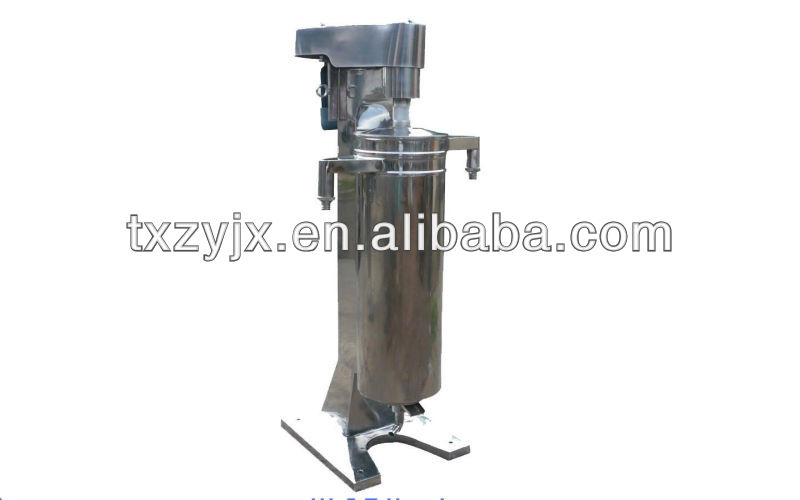

GF105 tubular centrifuge

1.two-phase liquid liquid, 2.three-phase liquid liquid solid, 3.density difference between two liquid can be 0.01 - details see: https://www.machineto.com/gf105-tubular-centrifuge-10303079

Condition:New	Type:Centrifuge	Product Type:Other	Place of Origin:Liaoning China (Mainland)
Brand Name:TXYJ	Model Number:GF105	Voltage:design for different country	Power(W):2200
Weight:500	Dimension(LWH):6009001600	Certification:ISO9001	Warranty:Warranty period of one year
After-sales Service Provided:Engineers available to service machinery overseas	Rotation speed:16300rpm	G-force:15620g	Throughput capacity:1200L/H
Machine control:Frequency inverter optional	Application:Liquid-liquid-solid separation	Material:Stainless steel SS304 or SS316 as requirement

contact supplier for GF105 tubular centrifuge

Working Principle

The GF105 tubular centrifuge consists of machine body, driving part, bowl, liquid collecting pan and liquid-in bearing seat etc.

The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force.

Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.

Typical Application:
It is mainly used for the liquid liquid separation or liquid liquid solid separation. For examples:

1) Separation of blood(plasma and hemoglobin separation)
2) Oil separation(vegetable oil degum, de-soap, fish oil polishing, oil and water separation, waste oil treatment)
3) Waste water handling
