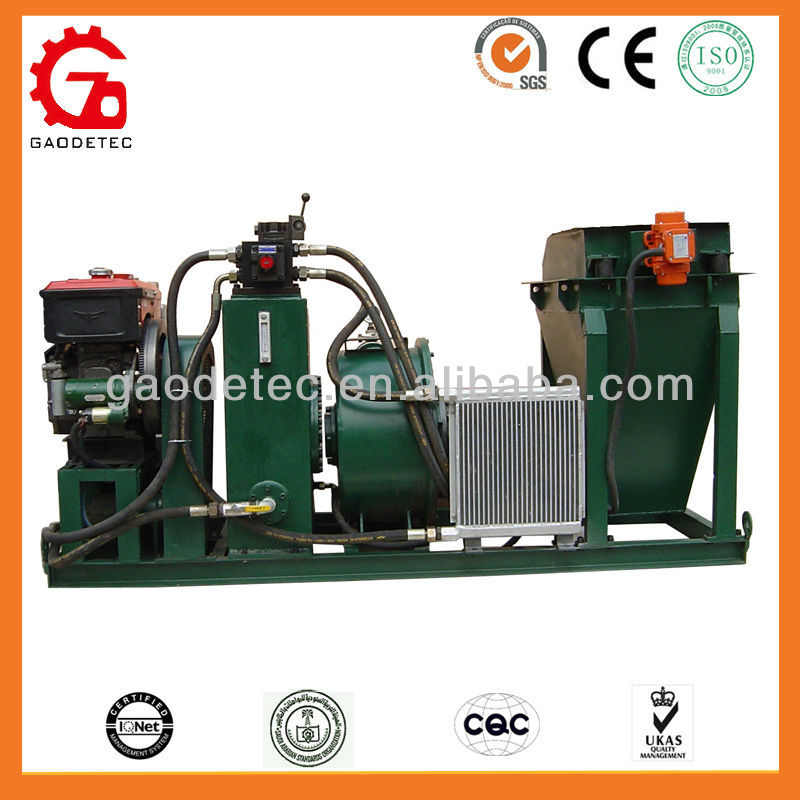

GDS1500D Small Concrete Pump

Product introduction:

GDS1500D Small Concrete Pump is adiesel-powered lightweightshotcrete pump run by a highly-reliable direct driveplanetary gearbox and hydraulic power pack.

This sturdy workhorse is made better with the added improvement of adirect driveto the carousel.

Small Concrete Pump direct drive uses a10hp diesel power pack, is skid mounted.

Product Features:

1 highly-reliable direct drive planetary gearbox

2 infinite speed variation

3 Easily operating on site work

4 Standard spare part supply

GDS1500D Small Concrete Pump Technical Data

Item	Description
Pressure	1.5 Mpa
Output	1.5-3m3/h
Max. Aggregate	8mm
The Squeeze Hose	ID 50mm
Conveying Hose	ID 38mm
Squeeze pump	LH50-455
Power	CFZ12 Diesel Engine, 10hp
Overall Dimension	2150x1100x1150mm
Hopper volume:	130 Liter
Weight	660kg
Requested air compressor	3m3/min, 0.5Mpa Pressure

Note: the Gasoline engine or Electric motor is optional.

you also have other choices:

GDS1500G Small Concrete Pumptechnical data

Item	Description
Pressure	1.5 Mpa
Output	1.5-3m3/h
Max. Aggregate	8mm
The Squeeze Hose	ID 50mm
Conveying Hose	ID 38mm
Squeeze pump	LH50-455
Power	Honda GX390 Gasoline engine
Overall Dimension	1900x850x1250mm
Hopper volume:	200 Liter
Oil tank	120 Liter
Weight	610kg
Requested air compressor	3m3/min, 0.5Mpa Pressure

A Complete set of GDS1500D Small Concrete Pump

No.	Description	Qty.	Unit	Remarks
1	GDS1500D main machine	1	set
2	pump squeeze tube	1	pcs
3	conveying hose, ID38, L10m	2	pcs
4	reducer 2'/1.5'	1	pcs
5	shotcrete nozzle assy.	1	set
6	nozzle tip	1	pcs
7	air filter	1	pcs
8	clamp	1	pcs
9	clean ball	3	pcs
10	accessories	1	set

Photoes
