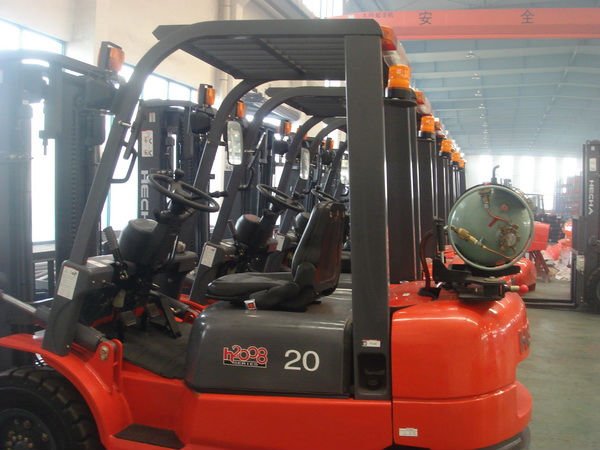

gasoline lpg FORKLIFT
FORKLIFTgood quality and best PRICE, STABLE PREFORMANCE AND SOLID STEEL FORKLIFT COVOE;, ORIGINAL JAPANESE ENGINE AND SPARE PART - details see: https://www.machineto.com/gasoline-lpg-forklift-10109979
Condition:New | Place of Origin:Zhejiang China (Mainland) | Brand Name:HECHA | Model Number:FGL35T-HWB3 |
Type:Powered Pallet Truck | Power Souce:Gasoline Engine | Rated Loading Capacity:3500KG | Max. Lifting Height:4500MM |
Min. Lifting Height:2000MM | Fork Length:1070MM | Fork Width:135 | Overall Dimensions:1070X130X45 |
COLOR:RED | BRAND:HECHA | Weight:3980kg |
gasoline forklift truck, perfect after sale service, good quality
General | 1 | Model | FGL20T-HWB3 | FGL25T-HWB3 | FGL30T-HWB3 | FGL35T-HWB3 | |||||||
(FGL20-HWB1) | (FGL25-HWB1) | (FGL30-HWB1) | (FGL35-HWB1) | ||||||||||
4 | Power type | Gasoline/LPG | |||||||||||
2 | Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | |||||||
3 | Load center | mm | 500 | ||||||||||
5 | Operator type | Seated | |||||||||||
6 | Tyre type | Front/Rear | pneumatic | ||||||||||
7 | Number of wheels(X=driven)) | Front/Rear | 2×/2 | ||||||||||
Dimens ions | 8 | Lifting height | mm | 3000 | |||||||||
9 | Free lift height | mm | 140 | 145 | 150 | ||||||||
10 | Fork size | LxWxT | mm | 920×122 ×40 | 1070×122 ×40 | 1070×125 ×45 | 1070×130 ×45 | ||||||
11 | Mast tilt range | F/R | deg | 6/12 | |||||||||
12 | Overall Length(Without fork) | mm | 2513 | 2583 | 2698 | 2725 | |||||||
13 | Overall width | mm | 1150 | 1225 | 1225 | ||||||||
14 | Mast lowered height | mm | 1995 | 2070 | 2160 | ||||||||
15 | Mast extended height | mm | 4030 | 4250 | 3290 | ||||||||
16 | Overhead guard height | mm | 2070 | 2090 | |||||||||
17 | Turning radius(Outside) | mm | 2170 | 2240 | 2400 | 2450 | |||||||
18 | Fork overhang(Wheel center to fork face) | mm | 483 | 498 | |||||||||
19 | Min.right angle stacking aisle width (Add load length and clearance) | mm | 2640 | 2710 | 2885 | 2900 | |||||||
36 | Wheelbase | mm | 1600 | 1700 | |||||||||
37 | Tread | Front | mm | 970 | 1000 | ||||||||
38 | Rear | mm | 970 | ||||||||||
39 | Ground clearance | Lowest | mm | 110 | 135 | 145 | |||||||
40 | Wheel base center | mm | 115 | 140 | 140 | ||||||||
Perfor mance | 20 | Speed | Travel | Full load | km/h | 17 | 18 | ||||||
21 | No load | km/h | 19.5 | 19.5 | |||||||||
22 | Lifting | Full load | mm/s | 570 | 450 | 380 | |||||||
23 | No load | mm/s | 600 | 500 | 450 | ||||||||
24 | Lowering | Full load | mm/s | 450 | 420 | ||||||||
25 | No load | mm/s | 550 | 500 | 460 |
Packaging Detail:STANDARD EXPORTION PACKING |
Delivery Detail:30 DAYS PRODUCTION |
